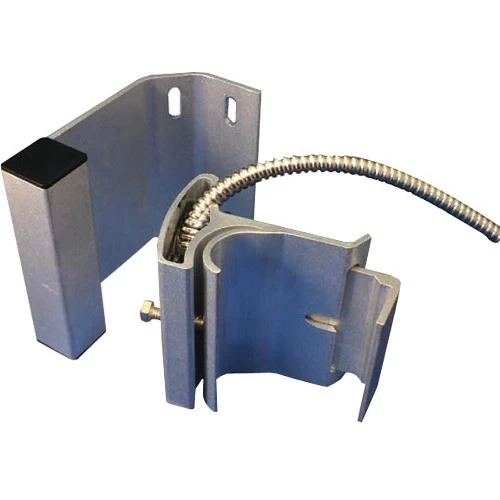

ADI PRO W BOX 0E-DC4811 Overhead Door Track Mount Contact With Armored Cable

The ADI PRO W BOX 0E-DC4811 Overhead Door Track Mount Contact with Armored Cable provides and effective and convenient means to secure overhead / panel type roll up doors which incorporate a roller transport mechanism. The inclusion of an adjustable L-bracket allows fitting to roller tracks up to 3in. wide. For the highest level of security, mount the switch below any other devices installed on the track while still high enough to keep the cabling off the floor surface. Mount the magnet on the door so there is a 1/4 in. spacing between the switch and the magnet when the door is in a closed orientation. Avoid locating the magnet near handle and/or latch to prevent it from being used as a foothold or other type of door closing accessory.

FEATURES:

• 27″ Armored Cable
• Normally Closed Loop
• Closed Gap 2.5″
• Crush resistant
• Durable magnet
• Simple installation

SPECIFICATIONS:

• Magnet Length 3.5”
• Magnet Depth 1.7”
• Magnet Height 3.2”
• Switch Depth 1.8”
• Switch Height 3”
• Wire Leads 27″ Armored Cable
• Max. Contact Rating 30VDC, 0.2A, 5W
• Loop Type Closed
• Reed Form N/O
• Closed Gap 2.5” (65mm)
• Departure Gap 2.65” (67mm)
• Max. Initial Contact Resistance 0.20 Ω

WBOX 0E-DC4811 Overhead Door Track Mount Contact Installation Manual
