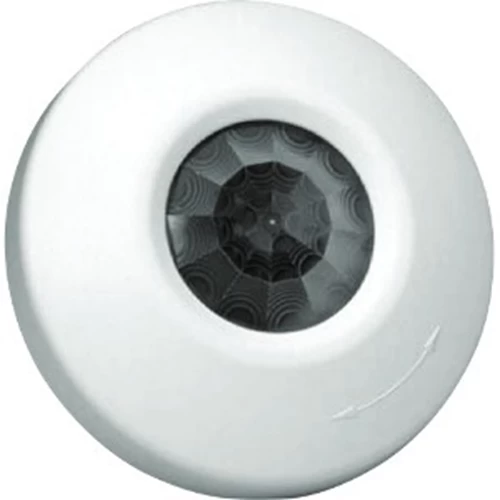

ADI PRO W BOX 0E-PIRCM Ceiling Mount Passive Infrared Motion Sensor (360°)

The ADI PRO WBOX 0E-PIRCM Ceiling Mount Passive Infrared Motion Sensor (360°) is designed to be mounted in small to medium sized rooms between 8’ and 12’ high. Optimal performance is achieved when the detector is mounted on the ceiling in the center of the protected area. While a single ceiling mount sensor is ideal for sensing motion in rooms up to 30’ x 30’, multiple detectors are recommended when protecting larger areas like classrooms, meeting rooms, public lobbies and storage areas.
Mounting the detector on the ceiling helps minimize vandalism and tampering—making it especially effective in public areas such as schools and retail establishments. The compact, discrete size makes it a nearly invisible way to detect motion, so it will not detract from the style or architecture of the protected area. This is a wired sensor!

FEATURES:

CEILING MOUNT PASSIVE INFRARED MOTION SENSOR (360°)

• Twist-off cover for easy removal
• Tampered front cover
• Power: 17mA @ 12VDC
• Temperature: 32°F – 122°F (0°C – 50°C)
• Humidity: 95% Non-condensing
• Dimensions: 3.5″ Diameter x 1″ H

SPECIFICATIONS:

DIAMETER COVERAGE PATTERN:UP to 36′ (11m)
LOOK-DOWN CAPABILITY: 360°
MOUNTING HEIGHT: 8′ to 12′
