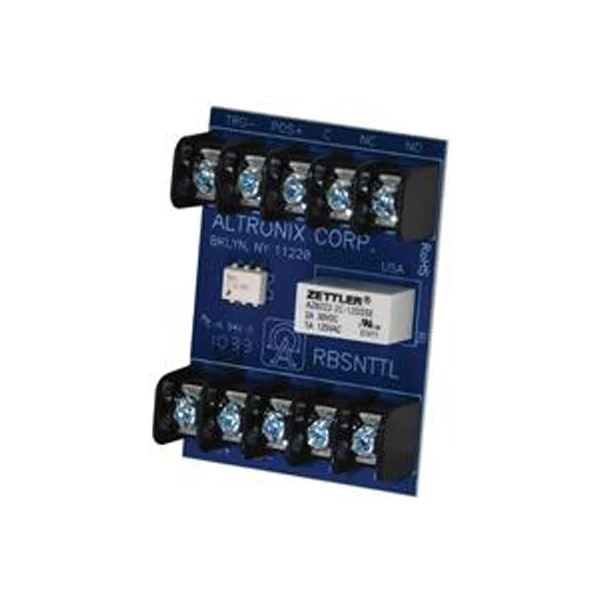

Altronix RBSNTTL Ultra-Sensitive Relay Module

The Altronix RBSNTTL Ultra-Sensitive Relay Module is designed for continuous duty. This rugged and dependable relay will handle any switching application.

           Input Voltage:

• 12VDC to 24VDC selectable operation.
• 3VDC to 24VDC 2mA – 16mA isolated trigger.
• Current draw: 45mA.


  Contact Rating:

• 1 amp/120VAC or 2 amp/28VDC DPDT contacts.


  Electrical:

• Operating temperature: -25° C to 55° C ambient.
• System AC input VA requirement: 10.8VA.


  Dimensions (approximate):

• 1.9″W x 2.75″L x 1.1″H (48.26mm W x 69.85mm L x 27.94mm H)


  Weights (approximate):

• Product Weight: 0.48 Lbs (0.22 kg)
• Shipping Weight: 0.5 Lbs (0.23 kg)
