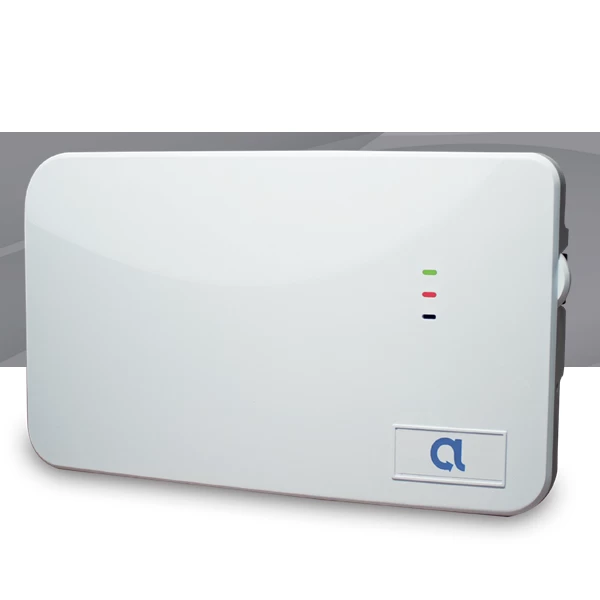

Alula RE508XC 8-Zone Commercial Hardwired To Wireless Translator

The alula RE508XC 8-Zone Commercial Hardwired to Wireless Translator Converts hardwired intrusion zones to wireless sensors, enabling enrollment to a wireless panel. Universally configurable for multiple sensor-panel combinations. The UL-compliant translators include a 12VDC wall transformer and back-up battery. Also functions as a repeater to increase sensor range and reliability.

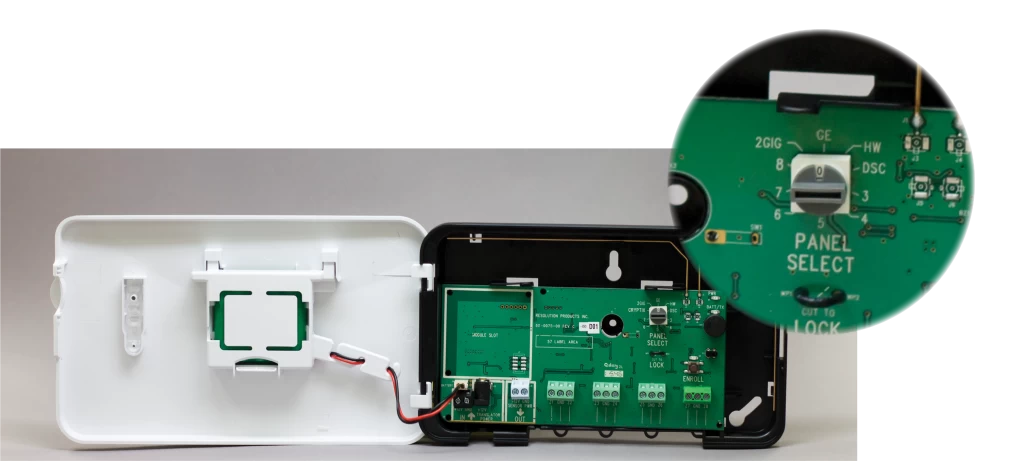

Field configurable RF. Just set the dial to the brand of sensor and the brand of panel being installed. You no longer need a specific model set to the specific manufacturers frequency.

FEATURES:

• Compatible with most sensor brands
• 8 Hardwire loops, with end-of-line resistor auto-detect
• Unique wireless ID (or loop) for each zone
• Unique wireless ID for the device itself
• 12VDC available to back-up PIRs, glassbreaks and other 150mA (80 mA for UL) sensors
• Dual antennas increase sensor range and reliability
• Separate ID’s supervise tamper, power, and low battery

TECHNICAL SPECIFICATIONS:

Physical
8.5 x 5.0 x 1.3 inches
16.0 oz
Cover Opening, Wall Removal
#4 or #6 screws (not included)
32º to 120ºF (0º to 49ºC)
-4º to 86ºF (-20º to 30ºC), Long-Term
85% relative humidity, non-condensing
10.2VDC to 13VDC, 150mA Max (80mA Max for UL installations)
100-240VAC 50/60Hz 0.5A
12VDC 1A
RE012-6
N/A
6VDC 800mAh NiMH
RE030
8mA
32mA
319.5MHz, 345MHz, 433.92MHz
Cryptix® (Connect+), Interlogix® (formerly GE®), Honeywell®, DSC®, 2GIG®, Qolsys®
N/A
4-wire devices only NC (Normal Closed) or NO (Normal Open)
4 hours minimum at 80mA 24 hours minimum
None (short)
750 ohm to 15k ohm
None (open)
750 ohm to 15k ohm
1000 feet max
22 AWG min
RE508X: UL1023, ULC1023
RE508XC:
UL1023, ULC1023, UL1610, ULC S304
FCC, IC
