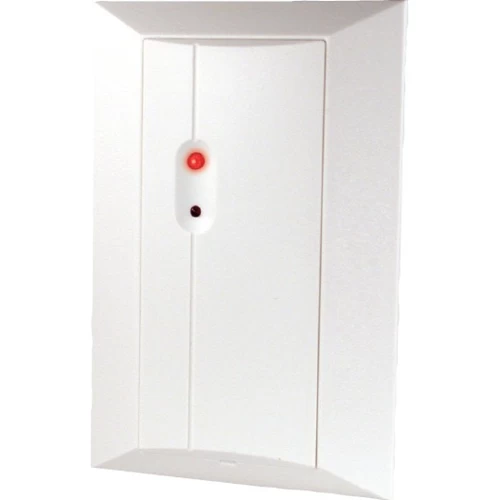

Bosch DS1103i Rectangular Flush Mount Glass Break Detector

The Bosch DS1103i Rectangular Flush Mount Glass break Detector uses microprocessor-based sound analysis technology (SAT) to listen for the specific frequencies associated with breaking glass. The DS1102i can be used to detect breakage of plate, tempered, laminated and wired glass types. A built-in environmental test feature alerts the installer to false alarm hazards in harsh environments. The flush mount detector mount on the ceiling or walls.

Standard Features:

• Microprocessor-based sound analysis technology (SAT)
• Automatic environmental test circuitry
• Sound check
• Flush Mount

FUNCTIONS:

Signal Processing

Audio signals are analyzed using microprocessor-based SAT and must produce specific frequency, signature, and timing relationships to cause an alarm. The sophistication of this processing technique ensures proper catch performance while eliminating false alarms.



Test Features

The magnet‑operated test mode provides a location verification and operational test when using the optional DS1110i Glassbreak Tester. The test mode also includes an environmental test that alerts the installer to possible false alarm sources caused by ambient noise. The automatic sound check feature allows the end user to verify that the detector is powered and functioning by clapping his hands. An externally‑visible alarm LED indicates an alarm or test condition and can be programmed to latch if desired.



Mounting

Mount the DS1101i series detectors on the ceiling, or on the wall opposite or adjacent to the window. Coverage depends on room acoustics and window size.



Technical Specifications:

·       Current: 21 mA at 12 VDC

·       Voltage: 9 VDC to 15 VDC

·       Standard Coverage: 7.6 m (25 ft) for glass sizes over 30.5 cm x 30.5 cm (12″ x 12″)

·      Unmounted Dimensions:  12 cm x 8.3 cm x 1.3 cm (4.8 in. x 3.25 in. x 0.5 in.)

·       Material: High impact ABS plastic enclosure

·       Tamper: Normally-closed (NC) cover‑activated tamper switch with separate terminals. Contacts rated at 28 VDC, 125 mA maximum.

·       Alarm: Form C reed relay rated 3.5 W, 125 mA at 28 VDC for resistive loads
