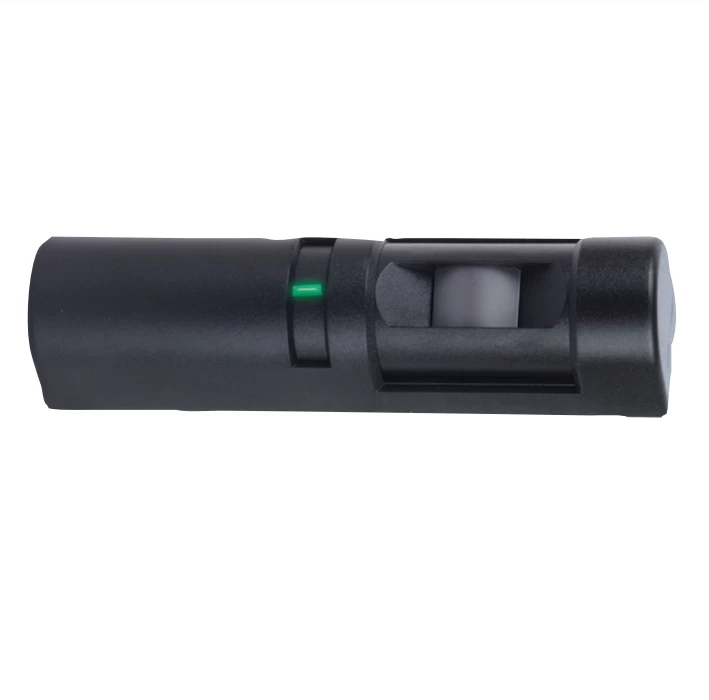

Bosch DS151i Request-to-Exit Motion Detectors

The Bosch DS151i Request-to-Exit Detectors (black) and the DS151i Detector (black) are specifically designed for Request-to-exit (REX) applications. The Bosch DS150i Request-to-Exit Detectors and Bosch DS151i Request-to-Exit Detectors detect motion in their coverage area and signal an access control system or door control device

Standard Features:

• Single or double door use
• Wall or ceiling mountable
• Internal vertical pointability
• 8 ft x 10ft Coverage
• Wrap-around coverage pattern
• Selectable relay trigger mode
• Color: Black

Technical Specifications:

Current Draw: 26 mA at 12 VDC

Voltage: 12 VAC or VDC; 24 VAC or VDC

Mechanical:

• Alarm Output: Two Form C relay contacts
• Indicators: One activation LED
• Relay Latch Time: Adjustable to 60 sec
• Enclosure Dimensions: 3.8 cm x 15.9 cm x 3.8 cm (1.5 in. x 6.25 in. x 1.5 in.)
• Enclosure Material: High impact ABS plastic enclosure
• Power Loss Default Mode: Programmable fail-safe or fail-secure modes
• Timer Mode: Programmable reset (accumulative) or non-reset (counting) mode.
• Mounting Location: Surface mount on wall or ceiling

Environmental:

Operating Temperature: -29°C to +49°C (-20°F to +120°F)

Radio Frequency Interference (RFI) Immunity: No alarm or setup on critical frequencies in the range from 26 MHz to 1000 MHz at 50 V/m.
