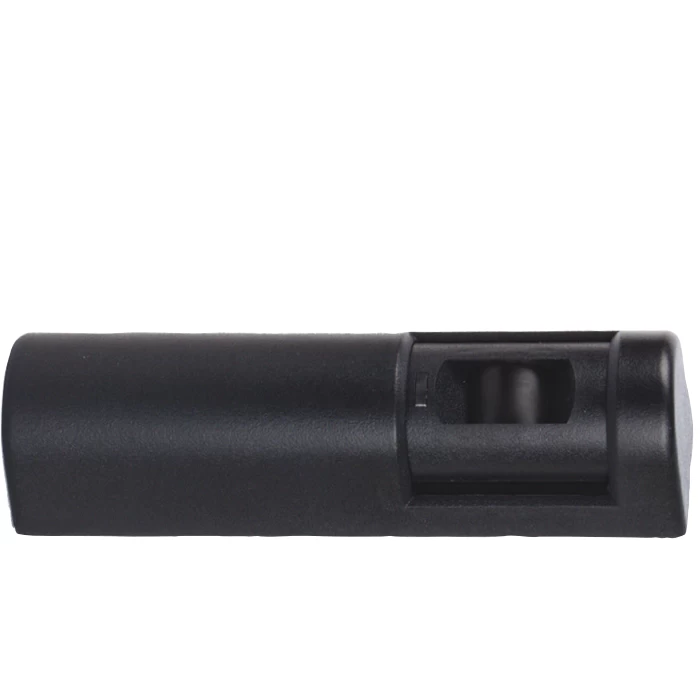

Bosch DS161 High Performance Request‑to‑Exit Detectors

The Bosch DS161 High Performance Request‑to‑Exit Detectors (black) and the DS160 Detector (light grey) specifically designed for Request-to-exit (REX) applications. With features such as timers, door monitor with sounder alert, and pointable coverage, the DS160 and DS161 have the flexibility to meet the most stringent REX requirements. The exclusive Sequential Logic Input (SLI) provides added security that is not offered in any other REX device

Standard Features:

• Door monitor with sounder alert
• Sequential Logic Input (SLI)
• Internal vertical pointability
• Wrap-around coverage pattern with precise pattern control
• Up to 64 second adjustable latch time
• Coverage: 8 ft x 10 ft
• Color: Black

FUNCTIONS:

Sequential Logic Input (SLI)- The SLI terminal allows connection of a second device to require sequential detection. This eliminates the possibility that an object that is slid through the door or underneath the door will activate the detector. This input can also be used to lock the sensor if motion is present outside the premises.

Door Monitor- The sensor can monitor a door contact to allow special control of the internal relay. For example, if the door is opened within the relay time period, the sensor can be programmed to halt the timer. If the door is not opened within a specific time period, the relay can be programmed to deactivate.

Sounder Alert- An integrated sounder can be programmed to activate if the door is left open too long. The sounder volume is fully adjustable to 85 dB.

Keycard Input- The keycard input allows the sensor relay to be controlled from an external source, such as an access control system or card reader.

Technical Specifications:

Electrical:

Current Draw: 8 mA nominal standby current, 39 mA at 12 VDC in alarm

Voltage: 12 VAC or VDC to 30 VAC or VDC

Mechanical:

• Alarm Output: Two Form C relay contacts each rated 1 A at 30 VAC or VDC for resistive loads
• Indicators: 1 activation LED
• Relay Latch Time: Adjustable from 0.5 sec to 64 sec
• Enclosure Dimensions: 4.5 cm x 17.1cm x 4.4 cm (1.80 in. x 6.75 in. x 1.75 in.)
• Enclosure Material: High impact ABS plastic enclosure
• Power Loss Default Mode: Programmable fail-safe or fail-secure modes
• Timer Mode: Programmable reset (accumulative) or non-reset (counting) mode.
• Mounting Location: Surface mount on wall or ceiling

Environmental:

Operating Temperature:-29°C to +49°C (-20°F to +120°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)

Radio Frequency Interference (RFI) Immunity: No alarm or setup on critical frequencies in the range from 26 MHz to 1000 MHz at 50 V/m
