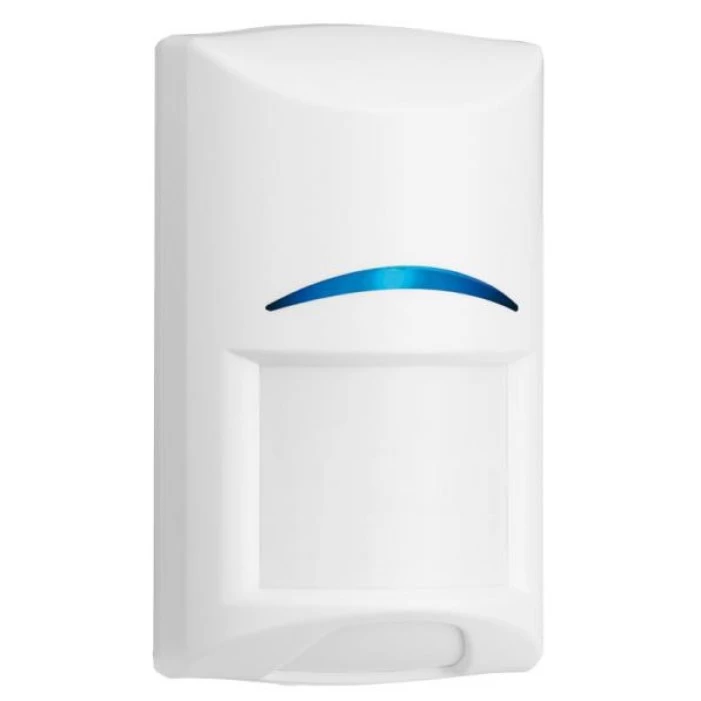

Bosch ISC-BDL2-WP12G Blue Line Gen2 TriTech Motion Detectors

The Bosch ISC-BDL2-WP12G Blue Line Gen2 TriTech Motion Detectors use a combination of passive infrared (PIR) and microwave Doppler radar detection with advanced signal processing. The pet‑friendly (‑WP) models generate alarms for human intruders without generating false alarms for pets. These small unobtrusive detectors are simple to install and do not need field adjustments.

FUNCTIONS:

First Step Processing (FSP) First Step Processing (FSP) almost instantly responds to human targets without producing false alarms from other sources. FSP adjusts the detector’s sensitivity based on signal amplitude, polarity, slope, and timing. This eliminates the need for the installer to select the sensitivity level, thus improving ease of installation and reliability.

Pet‑friendly Selectivity (WP models only) The installer can turn pet immunity on or off based upon application requirements. When pet immunity is turned off, the detector provides superior catch performance identical to the non‑pet models. When pet immunity is turned on, the detector can distinguish between signals caused by humans and signals caused by pets. It ignores signals caused by one or two pets up to 45 kg (100 lb) or numerous rodents.

Microwave Noise Adaptive Processing Microwave Noise Adaptive Processing adjusts to background disturbances, reducing false alarms without sacrificing intruder detection.

Dynamic Temperature Compensation The detector intelligently adjusts its sensitivity so that it can identify human intruders at virtually any temperature.

Wall-to-Wall Coverage An improved lookdown zone and coverage range of 12 m x 12 m (40 ft x 40 ft) provide wall-to-wall coverage.

Self-locking Enclosure The sliding self‑locking enclosure has an integrated bubble level and custom gap‑free, lift‑gate style terminal blocks to make installation easier.

Standard Features:

• Pet‑friendly Selectable model available – optimize installation for pet (45 kg [100 lb]) and non‑pet applications
• Dynamic Temperature Compensation – superior catch performance in any environment
• Microwave Noise Adaptive processing – reduce false alarms from repetitive sources
• Wall to Wall Coverage – superior catch performance
• Flexible Mounting Height, No Adjustments – reduce installation time and false alarms, improve catch performance

Electrical

Current (alarm/standby) 10 mA at 12 VDC

Voltage (operating) 9 VDC to 15 VDC

Environmental

Pet Immunity: One or two pets up to 45 kg (100 lb) or numerous rodents

Relative Humidity: 0 to 95%, non-condensing For UL Listed product installations

Bosch ISC-BDL2-WP12G Blue Line Gen2 TriTech Motion Detectors Data Sheet
