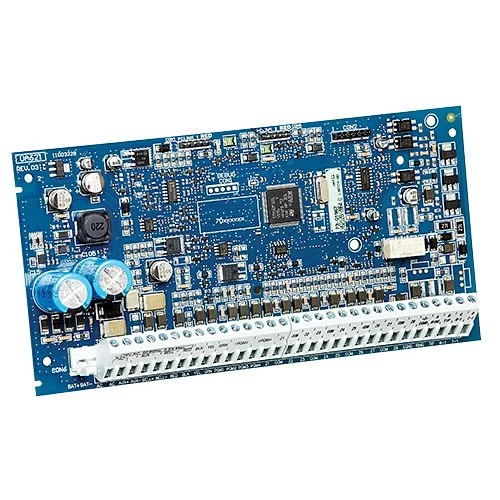

DSC HS2128PCB PowerSeries Neo 128-Zone Security Board Only
Original price was: $246.99.$99.99Current price is: $99.99.
HS2128PCB PowerSeries Neo 128-Zone Security Board Only
- 100% High-Quality Guarantee
- Effortless Shopping, Quality Products
- Service with a smile, always online.
- Multiple payment methods, safe and reliable
The DSC HS2128PCB PowerSeries Neo 128-Zone Security Board Only is a robust solution for your security needs. This advanced board features 8 built-in zones, with the capability to expand up to 128 zones, accommodating both wireless and hardwired options. The intuitive template programming simplifies setup, while the ability to connect up to 16 supervised keypads enhances control. With 8 distinct partitions and a generous 1000-event buffer, this system is designed for efficiency. Also supports 1000 user codes. Plus, the interconnected smoke detector support (v1.2) provides an extra layer of safety in critical situations. Elevate your security system today with the DSC HS2128 PowerSeries Board and experience peace of mind like never before!
Main Features
- 8 on-board zones
- Expandable to 128 wireless and hardwired zones
- 4 PGM outputs: expandable to 148 (HSM2204, HSM2208)
- Template programming
- Connect up to 16 supervised keypads with keypad zones
- 8 partitions
- 1000-event buffer
- 1000 user codes
- Interconnected smoke detector support with v1.2 allows for additional warning in potential life-threatening situations
- PowerSeries Neo panel supports LUX KONOzw smart hub thermostat (requires Alarm.com communicator). Available in USA and Canada
- PCB Only No enclosure
Control Panel Specifications
Power Supply ……………………..16.5 VAC/40 VA @ 50/60 Hz
Current Draw (Panel) ……………………………..85mA (Nominal)
Auxiliary Output ………………………13.75 +/- 5% Vdc/700mA
Bell Output …………………………….13.75 +/- 5% Vdc/700mA
Operating Environment ……………32° to 120° F (0° to 49° C)
Relative Humidity…………………………………………………..93%
Control Panel Approval Listings
FCC/IC, UL/ULC, SIA CP-01, CSFM, CNC, Anatel
DSC PowerSeries Installation Instructions
DSC Power Series User Manual
DSC HS2016, HS2032, HS2064, HS2128 Spec Sheet
