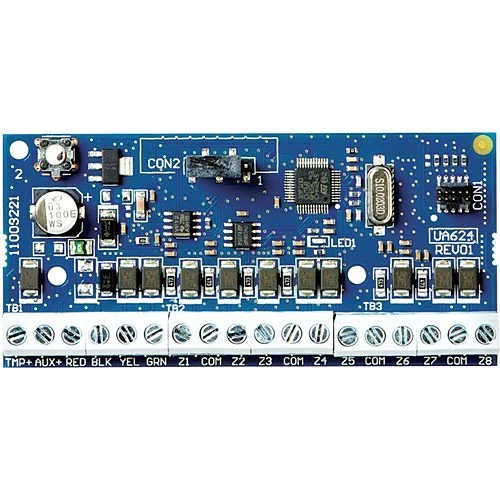

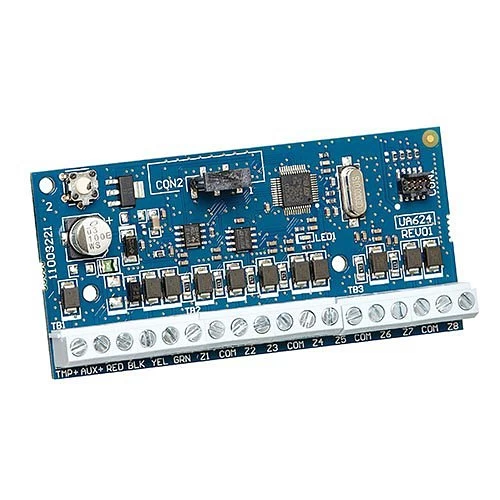

DSC HSM2108 PowerSeries Pro Neo Zone Expander Module 8, Hardwired

The DSC HSM2108 PowerSeries Pro Neo Zone Expander Module 8, Hardwired is a zone input module that adds up to eight fully programmable zone to any PowerSeries Neo security system.

Main Features

• Supports no end-of-line, single end-of-line and double end-of-line zone loops. (5,600 Ohm resistors)
• Connect up to 15 modules per system
• Tamper contact input
• Dimensions: 45mm x 92mm (1.12/16” x 3 5/8”)
• 40 mA (Max)
• 12 VDC Nominal
• Fully supervised expansion ensures constant communication with PowerSeries Neo control panel
• Simple wiring can be home run, daisy chained or tee-tapped anywhere on the Corbus
• Fully encrypted communications back to PowerSeries Neo

Specifications:

Expander Dimensions: … 45mm x 92mm (1.12/16” x 3 5/8”)

Board Current Draw: …… 40 mA (Max)

Voltage: ………………………12 VDC Nominal

Operating Environment: ..-10°C to 55°C (14°F to 131°F)

Relative Humidity: ……….. 5 to 93%

Approvals: Please refer to www.dsc.com for the most current approval listings.

Compatibility: The HSM2108 is compatible with all PowerSeries Neo control panels.
