New

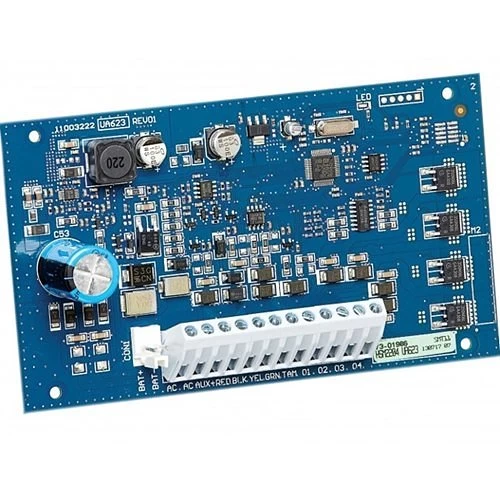

DSC HSM2204 PowerSeries Pro Neo High Current Output Security Module

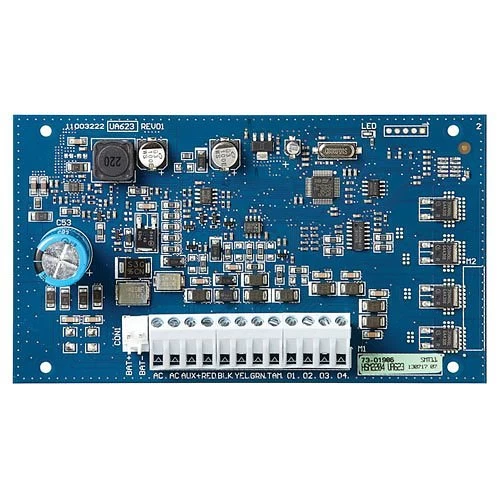

DSC HSM2204 PowerSeries Pro Neo High Current Output Security Module - Image 2

DSC HSM2204 PowerSeries Pro Neo High Current Output Security Module

Name: DSC HSM2204 PowerSeries Pro Neo High Current Output Security Module
SKU: HSM2204
Availability: InStock

Original price was: $91.99.Current price is: $64.39.

PowerSeries Pro Neo High Current Output Security Module

SKU: HSM2204 Categories: Receivers, Repeaters, Translators, Expansions and Modules, Security Products

100% High-Quality Guarantee
Effortless Shopping, Quality Products
Service with a smile, always online.
Multiple payment methods, safe and reliable

Description
Reviews (0)

PowerSeries Neo by DSC redefines intrusion security by combining the flexibility of a modular, hardwired system with the simplicity of a wide range of wireless devices and peripherals, resulting in the most comprehensive hybrid system available in the market today. This brand new and exceptionally flexible platform leverages the superior capabilities of PowerG – the industry’s leading-edge wireless intrusion technology. Innovative alarm verification solutions, together with an exceptionally comprehensive remote service software suite, make PowerSeries Neo the ideal first-class solution for residential and scalable commercial installations

Main Features

The HSM2204 is a dual-purpose module that provides programmable outputs for controlling external devices, and provides an additional +12 V 1.0 A of additional power
Fully supervised for AC failure, low battery and AUX failure
4 programmable high current voltage outputs: rated at 1 Amp @ 12 VDC
Output #1 can be used as a supervised bell output
Provides up to 1 Amp @ 12 VDC
Connect up to 4 modules per system
Compatible with all PowerSeries Neo control panels

Specifications:

Ordering Information: ….…..HSM2204 High Current PGM Expander

Dimensions: … ……………… 145mm x 83mm (5 45/64” x 3 17/64”)

Board Current Draw: ……. 40mA (Max)

Voltage: ………………………..12 VDC Nominal

Aux Output: …………………..1 A Max

Transformer Secondary Ratings: ..16.5Vac, 40VA

Battery Capacity: ………….4Ah, 7Ah, or 14Ah (2 x 7Ah) max.

Operating Environment:….-10°C to 55°C (14°F to 131°F)

Relative Humidity: ……….. 5 to 93%

Approvals: Please refer to www.dsc.com for the most current approval listings.

Compatibility: The HSM2204 is compatible with all PowerSeries Neo control panels
