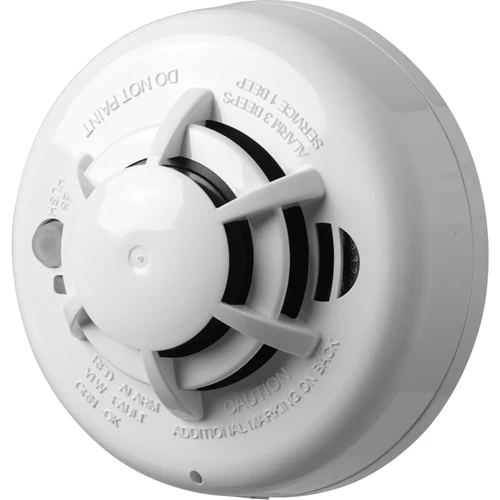

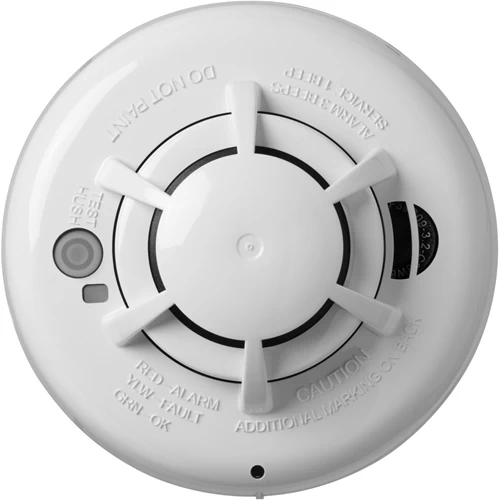

DSC PowerG PG9936 Wireless Smoke And Heat Detector

The DSC PowerG PG9936 Wireless Smoke and Heat Detector provides early warning of fire. It alerts occupants of the room by activating the built-in 85db alarm buzzer and flashing LED light when smoke or temperature exceeding 57°C (135°F) are detected. At the same time, it transmits a coded signal to the control panel to activate the system siren, alerting the end user and/or central monitoring station to send onsite assistance.

Easy Installation and Maintenance

With a quick installation process and just a few holes to drill, the PowerG Wireless Smoke and Heat Detector reduces time onsite, and increases productivity and revenue. As a wireless device, it offers home and business owners more choice in terms of installation, including locations in which wiring is difficult or impossible. Maintenance is also made easy, with audio and visual sensitivity degradation indicators notifying when cleaning or replacement of the detector is required.

The power of PowerG*:

The power behind PowerSeries Neo lies in various innovative technologies, including the revolutionary PowerG, which, bundled together, provide a robust and feature-rich platform designed to reduce operational costs for dealers and provide ultimate reliability for end users.

• Multichannel, Frequency Hopping Spread Spectrum technology – to overcome frequency blocking and interference

• Adaptive Transmission Power – for battery life preservation

• High transmission ranges – for reliable communication within up to 2km/2187 yards line-of-sight

• TDMA synchronized communication technology – to prevent message collisions

• 128 bit AES encryption – high level protection against analysis tools and digital attacks

Key Features:

• Provides accurate early fire warning, with audio and visual alerts, when smoke or high temperature is detected

• Enhances safety and facilitates maintenance, with alerts for device tampering and low battery

• Ensures performance using built-in PowerG leading-edge wireless intrusion technology with two-way communication

• Offers long-lasting value with a 3-year battery life (with typical use)

• Large transmission range enables repeater-free installations

• Speeds up installations with visible link quality indicator on the device

• Simple wall or ceiling installation, with bracket

• Protected by a back tamper

Specifications:

Dimensions: 125 x 63mm (5 x 2.5in)

Battery Life: 3 years (typical use)

Battery Type: 3 AAA batteries (included)

Weight: 243g (8.75oz)

Operating Temperature: 4.4°C to 37.8°C (40°F to 100°F)

Operating Environment: Indoors

Approvals:

• FCC/IC, UL/ULC CSFM, CNC Please refer to www.dsc.com for the most current approval listings.

Compatibility:

• PowerSeries Neo Systems, and iotega systems

• Qolsys IQ Panel 2+ with PowerG

UPC Code: 820043000092
