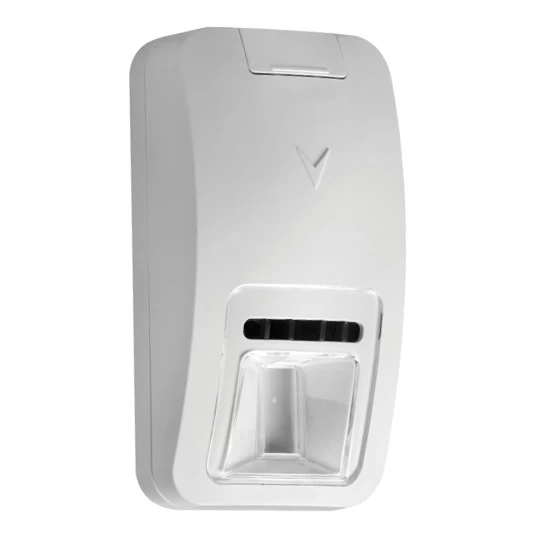

DSC PowerG PG9974P Wireless Mirror Optic PIR Motion Detector

The DSC PowerG PG9974P Wireless Mirror Optic PIR Motion Detector is a vital component of a security system. Upon the detection of motion, the PG9974P communicates an alert to the security system. Additionally, the PG9974P provides immunity from pets weighing up to 40 kg (90 lb) to reduce false alarms. Using advanced technologies, the PG9974P provides reliability, robustness to interference, prolonged battery life, extended range and easy installation.

Advanced Detection Technologies

The PG9974P uses a combination of elliptical parabolic mirror optics. This innovative technology creates an exceptionally efficient mirror with extremely high optical gain, delivering longer range and providing excellent detection sensitivity. The PG9974P also applies a digital temperature compensation that allows the detector to continuously adjust its sensitivity according to the location temperature. In this way, the PG9974P is able to detect an intruder even when the ambient temperature is close to that one of the human body. The PG9974P uses an obsidian black mirror technology. A unique, nickel-based, obsidian-like, reflective surface acts as a selective optical filter of infrared energy. In this way, the PG9974P can virtually eliminate white light interference and increase detection sensitivity

Easy to Install | Link Quality Indication

The PG9974P is equipped with a visible link quality LED indicator that lets the installer choose the optimal location for installation, eliminating the effort of going back and forth to the keypad. Additionally, device configuration is quick and easy with no hardware switches or need to re-open the device. All device configuration settings are handled via the system keypad.

• PowerG* robust industry leading commercial grade wireless technology
• Market-leading mirror optics offer exceptionally high detection sensitivity and immunity to false alarms.
• Vandal-resistant design through patented V-Slot technology
• 15 m (50 ft) 90° coverage
• Long-life lithium batteries included
• Pet immunity up to 40 kg (90 lb)
• Compatible with PowerSeries Neo Systems

The power of PowerG*:

The power behind PowerSeries Neo lies in various innovative technologies, including the revolutionary PowerG, which, bundled together, provide a robust and feature-rich platform designed to reduce operational costs for dealers and provide ultimate reliability for end users.

• Multichannel, Frequency Hopping Spread Spectrum technology – to overcome frequency blocking and interference
• Adaptive Transmission Power – for battery life preservation
• High transmission ranges – for reliable communication within up to 2km/2187 yards line-of-sight
• TDMA synchronized communication technology – to prevent message collisions
• 128 bit AES encryption – high level protection against analysis tools and digital attacks

Specifications:

Dimensions:…………. 115 x 60 x 48mm (4.5 x 2.3 x 1.1in)

Battery Life: ……………………………….7 years (typical use)

Battery Type: …………………..3V CR123A Lithium

Battery Weight: ……………………………………………………90g (3oz)

Coverage: ……………………………………….15m (49ft) / 90°

Operating Temperature: .. -10°C to 55°C (14°F to 131°F)

Approvals: FCC/IC, UL/ULC

Compatibility: PowerSeries Neo Systems
