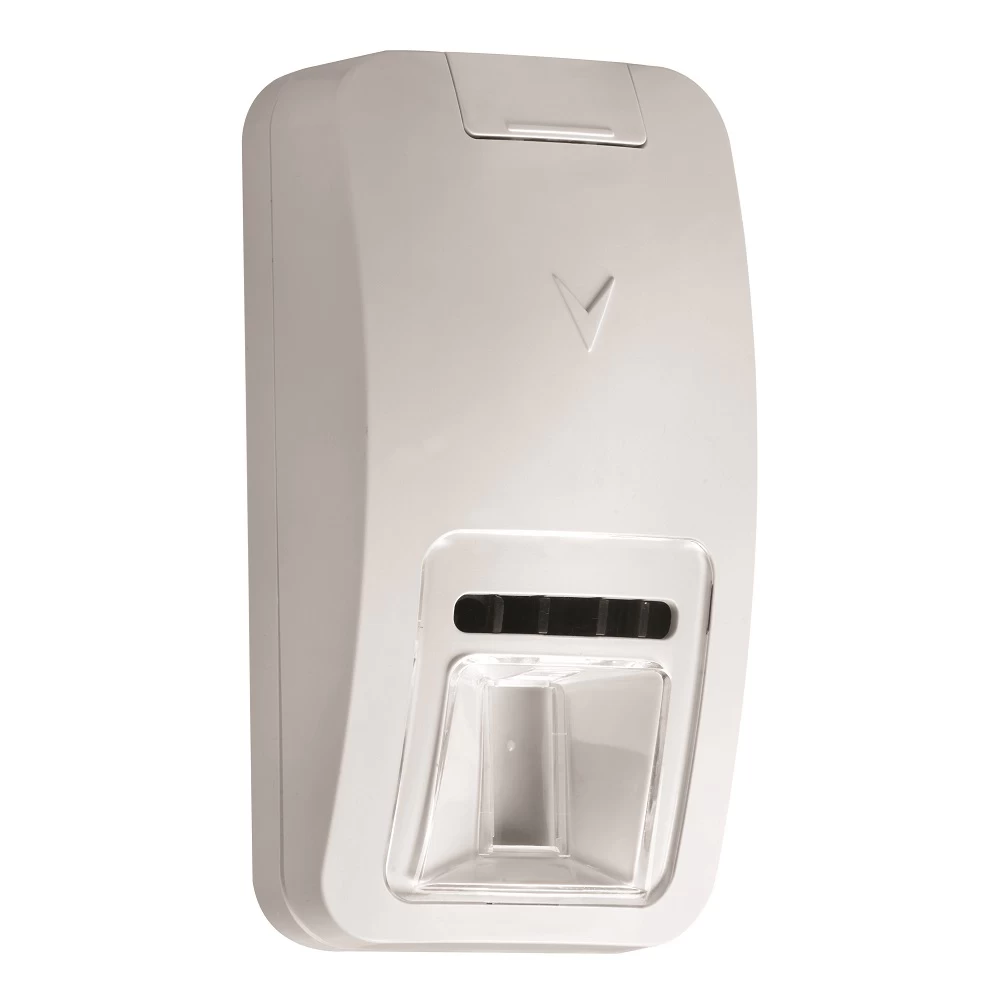

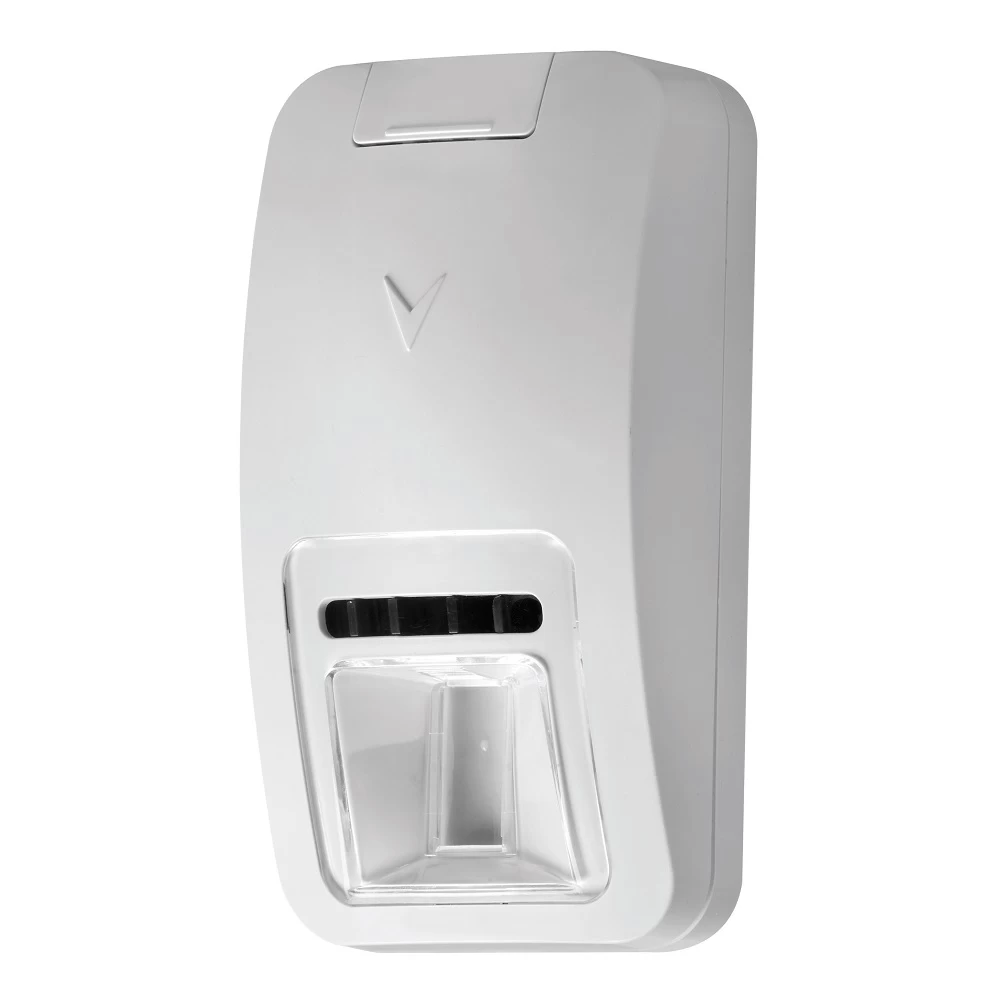

DSC PowerG PG9984P 915MHz Wireless PowerG Dual Technology Motion Detector

The DSC PowerG PG9984P 915MHz Wireless PowerG Dual Technology Motion Detector combines advanced PIR detection algorithms with K-band microwave detection to dramatically reduce false alarm events even in harsh installations. The PG9984P sends an alarm signal after both the PIR and the microwave sensors have detected an intruder, significantly reducing false alarms.

Features That Make a Difference:

• PowerG* robust industry leading commercial grade wireless technology
• Dual PIR and K-band microwave technologies dramatically reduce false alarms and decrease associated operational costs
• Vandal-resistant design through patented V-Slot technology
• Extended detection area 15m (50ft) 90º coverage range
• Pet immunity up to 18 kg (40 lb)
• Compatible with PowerSeries Neo Systems

Advanced Detection Technologies

The PG9984P uses a combination of elliptical parabolic mirror optics. An innovative mirror with extremely high optical gain delivers an extended range and provides superior detection sensitivity. The PG9984P also applies a digital temperature compensation that allows the detector to continuously adjust its sensitivity according to the location temperature. In this way, the PG9984P is able to detect an intruder even when the ambient temperature is close to that one of the human body. Finally, the PG9984P uses an obsidian black mirror technology. A unique, nickel-based, obsidian-like, reflective surface acts as a selective optical filter of infrared energy. In this way, the PG9984P can virtually eliminate white light interference and increase detection sensitivity.

Easy to Install | Link Quality Indication

The DSC PowerG PG9984P Wireless PowerG Dual Technology Motion Detector is equipped with a visible link quality LED indicator that lets the installer choose the optimal location for installation, eliminating the effort of going back and forth to the keypad. Additionally, device configuration is quick and easy with no hardware switches or need to re-open the device. All device configuration settings are handled via the system keypad.

Specifications:

Dimensions:………… 115 x 60 x 48mm (4.5 x 2.3 x 1.1in)

Battery Life: ………………………………5 years (typical use)

Battery Type: …………………………….3V CR123A Lithium Battery

Weight: …………………………………………90g (3oz)

Operating Temperature: -10°C to +55°C (14°F to 131°F)

Approvals: FCC/IC, UL/ULC

Compatibility:

DSC PowerSeries Neo and any Qolsys IQ Panel 2 that has an installed PowerG daughtercard.
