DSC Qolsys PG9HRDW8 IQ HARDWIRE PowerG Wired To Wireless Converter And Expansion Module

Convert any legacy hard-wired security system to smart wireless security systems. Upgrade to PowerG wireless.

DSC / Qolsys PG9HRDW8 IQ HARDWIRE PowerG Wired To Wireless Converter and Expansion Module leverages industry-leading PowerG wireless technology capabilities, featuring superior encryption and long range. A quick, easy and secure way to upgrade and enhance old security systems.

Key Differentiating Features:

• Industry-leading PowerG wireless technology​
• Connect siren, strobe and 4 PGMs for a full range of applications​
• Enhanced security is enabled by the double end-of-line programming, tamper protection (including back tamper) and the integrated power supply supervision​
• 2 Auxiliary independent power circuits​
• 24-hour back up battery is safely stored inside the plastic cabinet​ (12VDC 7AH MAX Battery Sold Separately)
• Use your favorite hardwired device from any hardwired portfolio and incorporate it into the PowerG ecosystem​
• Compatible with the Qolsys IQ2+, IQ Hub and IQ4 Panels​
• Use up to 2 modules per panel
• Cabinet’s size 300mm x 395mm x 85mm.
• Expansion slots for 4 HSM2108

Support for:

• Up to 18 conventional 2-wire smoke detectors
• CO detectors, 4-wire smoke detectors
• Siren output (Supervised) 12V @ 700mA
• NEO Hardwired Keypads x 2 (HS2LCD & HS2ICON)
• Up to 4 NEO Zone Expanders (HSM2108)
• NEO Power Supply x 1 (HSM2300)

Power G wireless technology:

• 128-bit AES encryption -superior, military-grade encryption quality
• Two-way TDMA communication -enhanced communication reliability & resistance to jamming
• Long range wireless communication -4x range vs. traditional wireless
• Easy to install & enroll

Size:

• 300mm x 395mm x 85mm

Approvals:

• • UL | FCC | ULC | IC

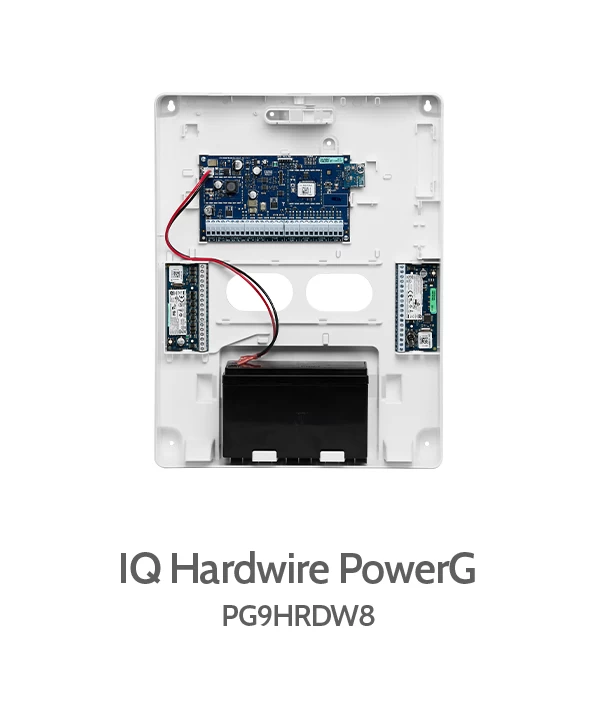

• *IMAGE SHOWN WITH ADDITIONAL CARDS AND BATTERY THAT ARE OPTIONAL ADD ON’S
• DSC Qolsys PGXHRDW8 Installation Manual
