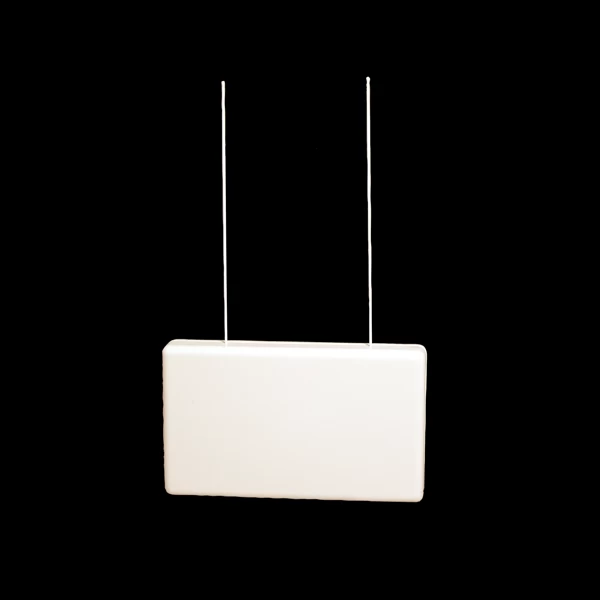

Honeywell Home 5800RP Wireless RF Alarm Repeater

The Honeywell Home 5800RP Wireless RF Alarm Repeater is a wireless repeater that extends the range of 5800 Series RF devices. For installations that require increased RF range, the 5800RP eliminates the need to run wires to a remotely installed secondary receiver and also eliminates the need to upgrade to a larger control panel that supports two receivers.

FEATURES:

• Extends the range of 5800 Series wireless devices
• Receives alarm, status and control messages from 5800 RF devices, and repeats these messages to the control panel via the primary receiver
• Compatible with all 5800 Series wireless devices (including bidirectional devices)
• UL residential burglary listed when used with optional transformer (300-07753)
• AC powered with a six-hour battery back-up K0257
• Requires K10145WH-1 Transformer
• Tamper protected

KEY BENEFITS:

• Provides extended coverage, reduces labor costs, saves installation time
• Saves wire run to a secondary receiver at a remote location
• Eliminates the need to upgrade to a control panel that support two receivers

SPECIFICATIONS:

Dimensions:

• 7-3/8” W x 4-3/8” (10-7/8”w/antennas) H x 1-7/16” D.
• 188mm W x 11 2mm H (277mm w/antennas) x 37mm D.

Input Voltage:

• 12VDC or 9VAC, 15VA (from separate power supply not included).

Current:

• 80mA

Battery Pack:

• Rechargeable, part number K0257
