Honeywell Home 6150 Fixed Display Deluxe Keypad

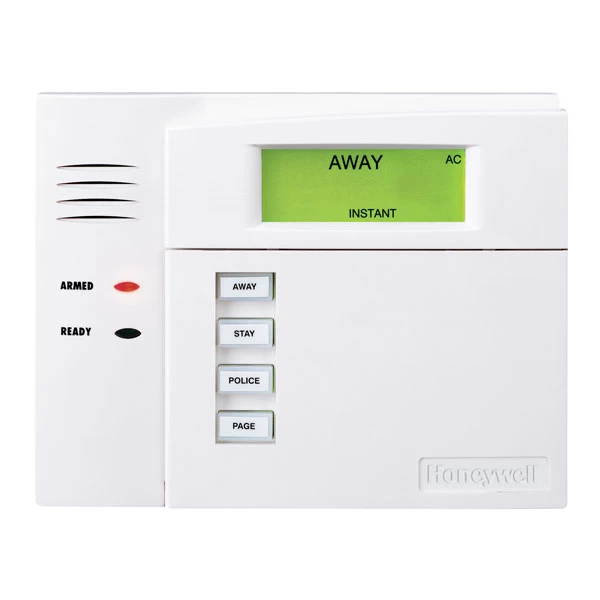

The Honeywell Home 6150 Fixed Display Deluxe Keypad is easy to install and simple to use. The attractive white console blends perfectly with any décor and features a contoured, removable door that conceals soft-touch illuminated keys. The 6150 also features a large backlit fixed glass display that uses three-digit zone numbers.

FEATURES AND BENEFITS

• Large, easy-to-use keypad
• Soft-touch rubber keys, continuously backlit for greater visibility
• Fully compatible with all VISTA® controls
• Piezoelectric sounder with audible beeps to indicate: – System status – Entry/exit delay – Other alarm situations
• System status displayed in fixed English
• No confusing blinking lights
• Four programmable function keys
• System functions clearly labeled
• Functions performed by just entering security code plus command
• White with removable door, blends with any décor

TECHNICAL SPECIFICATIONS

PHYSICAL

4-7/8″ H x 6-1/4″ W x 1″ D (125mm x 160mm x 25mm)

WIRING

– (Black): Ground

+ (Red): +12V DC (Aux. Power)

D1 (Green):“Data in” to control panel

D0 (Yellow): “Data out” from control panel

CURRENT

Standby – 40mA

Activated – 70mA

SOUNDER

Piezoelectric
