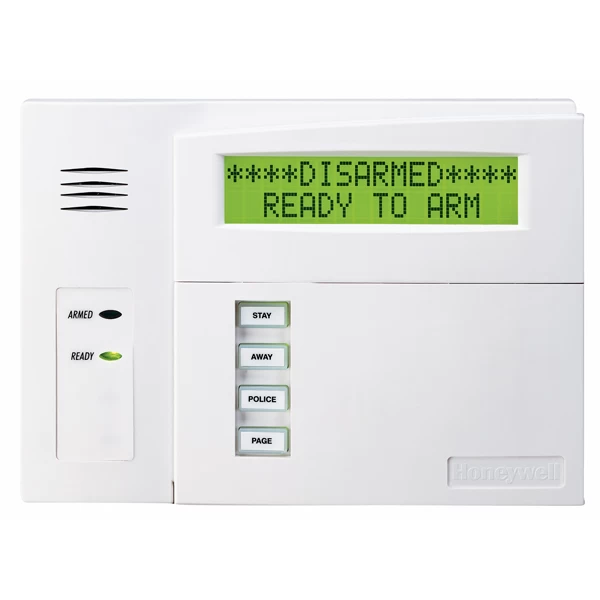

Honeywell Home 6160RF Alpha Display Keypad With Wireless Transceiver

The Honeywell Home 6160RF Alpha Display Keypad with Wireless Transceiver offers the unbeatable combination of convenient features and competitive value in a single, quick-install package. The integrated design solves the trickiest installation challenges by easily adding 5800 wireless devices to any compatible VISTA® control panel—without additional wiring or sacrificing zones, while also reducing installation time and costs. By adding the 5828 or 5828V wireless keypad to a VISTA control panel system presents a tremendous up-sell opportunity and offers a secondary wireless keypad. The attractive white console blends with any décor and features a contoured, removable door that conceals illuminated soft-touch keys. The 6160RF also features a large, bright 32-character display with easy-to-read status messages. The oversized function keys are easily accessed even when the keypad door is closed, and can be programmed for fire, burglary, personal emergencies and other applications. Colored self-adhesive labels are included.

FEATURES AND BENEFITS

• Large, easy-to-use keypad
• Comfortable soft-touch keys are illuminated for nighttime visibility
• Built in 5881ENH wireless receiver
• Compatible with 5828/5828V wireless keypads on VISTA systems
• Fully compatible with all 5800 wireless devices
• Speaker with audible beeps to indicate: – System status – Entry/exit delay – Other alarm situations
• Zones and system events displayed
• No confusing blinking lights
• Four programmable function keys can be programmed for one touch operation and accessible even when the door is closed
• System functions clearly labeled
• Functions performed by just entering security code plus command
• Sleek, white design blends with any décor
• Contoured, removable door lets customers customize the keypad for the look they want

TECHNICAL SPECIFICATIONS

PHYSICAL

5-5/16”H x 7-3/8” W x 1-3/16” D: (135mm x 190mm x 30mm)

CURRENT

Standby – 50 mA Activated Transmission – 150 mA

SOUNDER

Piezoelectric

WIRING

– (Black): Ground

+ (Red): +12 V DC (Aux. Power)

D1 (Green): “Data in” to control panel

D0 (Yellow): “Data out” from control panel

COMPATIBILITY

Fully compatible with all VISTA controls
