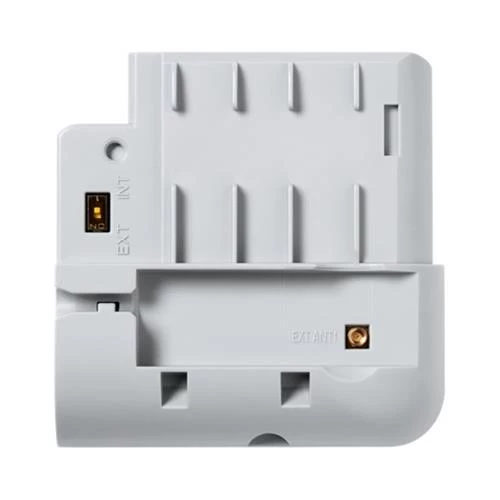

Honeywell Home PROLTE-A ProSeries AT&T LTE Cellular Communications Module

The Honeywell Home PROLTE-A ProSeries AT&T LTE Cellular Communications Module provide compatible ProSeries control panels with a cellular connection to the central station. The Communications Modules allow the control panel to communicate with the central station via the cellular radio network. The module connects directly to and is powered by the control panel.

Compatible Controllers include: PROA7PLUS and PROH8PLUS Series

FEATURES AND BENEFITS:

• AT&T LTE Network

• Extended Range Increase signal coverage with optional extended antenna

TECHNICAL SPECIFICATIONS:

COMPATIBILITY: ProSeries control panels

CURRENT DRAIN: Idle 30mA, standby

TRANSMIT: 490mA, max. transmits

BATTERY BACKUP: Yes (panel)

OPERATING TEMPERATURE: 32° to 122° F/0° to 50° C (Agency Compliance 32° to 120° F/0° to 49° C)

STORAGE TEMPERATURE: -40° F (-40° C) to 158° F (70° C)

OPERATING HUMIDITY: 95% max. (Agency Compliance 93% max.) non-condensing

DIMENSIONS: 2.7″ (70mm) L x 2.8″ (72mm) W x 0.7″ (18mm) H

ANTENNA: Penta-Band diversity antennas for LTE Supports LTE Bands 12, 13, 5, 4 and 2

APPROVALS: ETL

AUTHORIZED COUNTRIES: PROLTE-V: US PROLTE-A: US, Canada, Latin America
