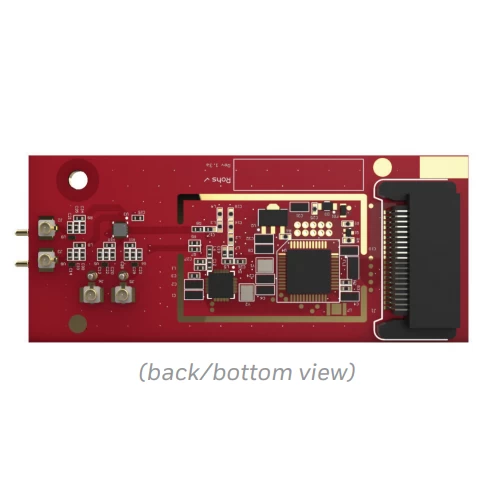

Honeywell Home PROTAKEOVER ProSeries Wireless Takeover Module

The Honeywell Home PROTAKEOVER ProSeries Wireless Takeover Module is a single, simple plug-in solution that enables ProSeries panels to communicate with multiple wireless security sensor protocols. The module can be added with a fast and easy installation on all ProSeries control panels.

MAIN FEATURES:

• One Module with Multiple Possibilities
• Installs directly to and powered from ProSeries panel
• Includes rear mounting plate with integrated antenna
• Reuse competitors one-way sensors
• Supports 315, 345 and 433 MHz competitive protocols
• Protocol selection is based on a single rotary

FEATURES AND BENEFITS:

• Easy plug-in installation and enrollment
• Protocols supported include 5800Series, 2GIG, DSC (North America),ITI and BOSCH
• Diversity antennas for increased coverage located in the All-in-One panel back plate
• UL 1023 compliant
• Power supply regulation on board – module is powered from the panel and is supported by the back-up battery should AC loss occur
• Protocol selection is based on a single rotary switch.

The module allows the user to choose between Honeywell 5800, 2GIG 345 MHz, Bosch, and 319.5 MHz Sensors.

TECHNICAL SPECIFICATIONS:

COMPATIBILITY: All ProSeries control panels

FREQUENCY: 319 MHz, 345 MHz and 433 MHz

POWER REQUIREMENTS/BATTERY: 5VDC

BATTERY BACKUP: Yes (panel)

OPERATING TEMPERATURE: 32° to 122° F/0° to 50° C (Agency

                                                     Compliance 32° to 120° F/0° to 49° C)

OPERATING HUMIDITY: 95% max. (Agency Compliance 93% max.) non-condensing

DIMENSIONS: 2.8″ (71mm) L x 1.2″ (30mm) W

APPROVALS: FCC/IC

                        ETL US Listed to UL 1023 and UL 1610

                        cETL Listed to ULC C1023

AUTHORIZED COUNTRIES: US, Canada, Latin America

Click here for more Honeywell Products

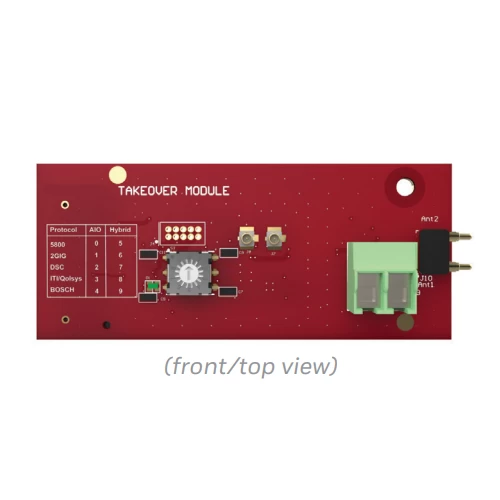

*THE GREEN TERMINAL CONNECTION SHOWN ON THE FRONT IMAGE IS FOR ADT PANELS ONLY, NOT THE PROA7 or PROA7PLUS PANELS
