Honeywell Home Resideo 944TRE-WH 3/8″ Diameter Recessed Contact With Terminals
Original price was: $12.00.$8.40Current price is: $8.40.
3/8″ Recessed Contact with Rare Earth Button Magnet
- 100% High-Quality Guarantee
- Effortless Shopping, Quality Products
- Service with a smile, always online.
- Multiple payment methods, safe and reliable

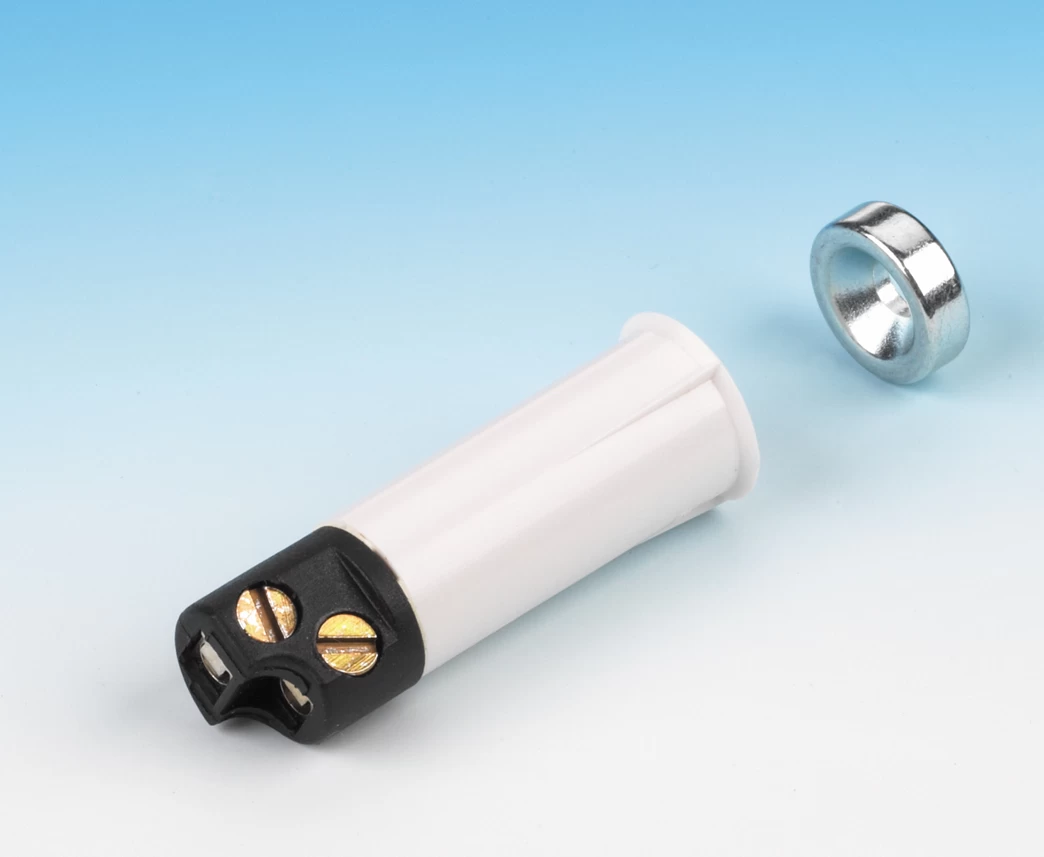

The Honeywell Resideo 944TRE-WH is a white, magnetic contact with terminals and a 3/8″ rare earth magnet.
Designed for Form A SPST (normally closed circuit) wiring, the 944TRE-WH features screw terminals for efficient installation with a 1/2″ standard gap.
Technical Specifications:
- Switch Type: Form A (SPST) Reed
- Contact Rating: 100ma at 28 VDC
- 3/8″ diameter press fit design
- Standard Gap: 1/2″ (13mm)
- Contact Type: Recessed magnetic reed contact
- Switch rating: 24 VDC at 100mA continuous
- Wiring: Screw terminals for wire gauge of 24 to 18 awg. Solid or stranded wire
- Switch Dimensions: 3/8″(10mm) diameter x 1.20″(30mm)
- Magnet Dimensions: 3/8″(10mm) diameter x .125″(3mm)
