Honeywell Home Vista 15P Alarm Kit With 6160 Alpha Keypad

The Honeywell Home Vista 15P Alarm Kit with 6160 Alpha Keypad is the ideal choice for any residential installation. VISTA-15P gives you the ability to send alarm signals via an Internet Protocol (IP), improving the speed at which information can be delivered to and from the control panel. In addition, when used with an AlarmNet® Internet or LTE communicator, the VISTA-15P can be installed in premises without TELCO lines. Hardwired expansion, graphic keypad support, two-wire smoke detectors, scheduling options and a host of end-user and installer features separate the VISTA-15P from all other six-zone panels – offering you the most panel for the dollar.

• IP and cellular radio alarm reporting and upload/download capability via LTE
• Z-Wave® thermostats, lights, locks, water shut-off, garage door, shades and audio control via Tuxedo Touch and VAM
• Six on-board hardwired zones
  • 16 hardwired expansion zones
  • 26 wireless expansion zones
• Supports two graphic touchscreen keypads
• Eight independent keyfob zones
• Eight output devices
• Two low current on-board trigger outputs
• 50 Event Log viewable at system keypads with time/date stamp
• 32 system user codes
• Two installer configurable zone types

Main Features

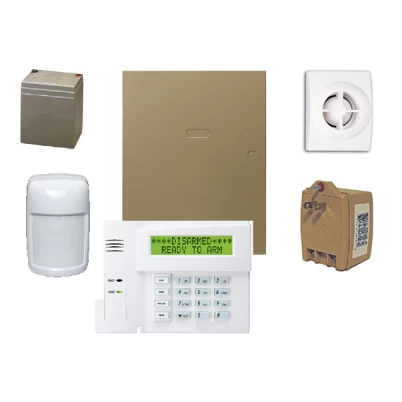

• Includes: VISTA-15P control panel, 6160 Keypad, Motion Sensor, Wave2 2-tone sounder, 467 Battery Back-Up, and Transformer
• VISTA-15P is a 32 maximum zone capacity control panel

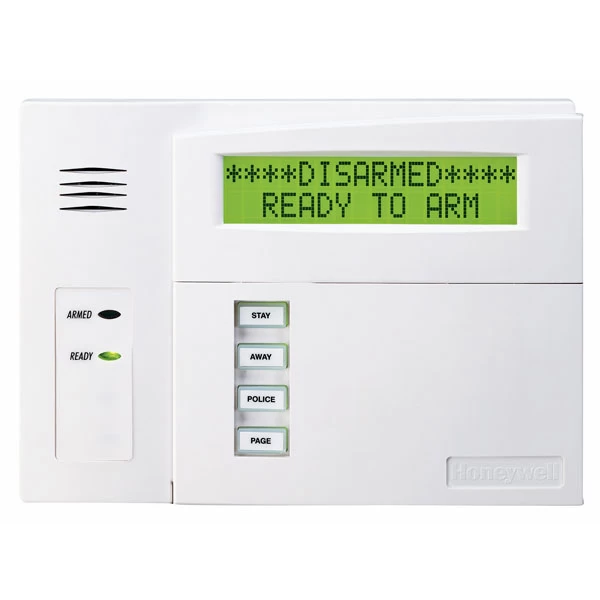

• 6160 is a Deluxe 32-Character Alpha Display Keypad
• Motion Sensor is a Passive Infrared, Pet Immune Lens
• WAVE2 is an indoor 106 DB two-tone indoor sounder
• 467 is a 12V 4AH Sealed Lead Acid Battery

*Motion Detector brand and model may vary

FEATURES:

• IP alarm reporting and uploading/downloading
• Six on-board hardwired zones
  – 16 hardwired expansion zones totaling 22
  – 26 wireless expansion zones
• Supports two graphic touchscreen keypads
• Eight independent keyfob zones allow wireless keys to be programmed without using any of the 26 zones
• Eight output devices
  – Relays (Model 4204 Relay Modules, or 4229 Expansion Module)
• Two low current on-board trigger outputs
• 50 Event Log viewable at system keypads with time/date stamp
• 32 system user codes
• Two installer configurable zone types allows the installer to “create custom zone types” by assigning all zone attributes
• Multiple actions on output devices depending on system “state”
  – Turns light off when system arms
  – Turns same lights on when system disarms
  – Flashes same lights when system is in alarm
• Built-in phone line cut monitor with programmable delay and annunciation options
  – Display on system keypads
  – Trigger local sounders
  – Trigger system bell
• Supports four-wire and up to 16 two-wire smokes
  – Works with Sentrol CleanMe™ maintenance signal

Valuable End-User Features

• Now viewable on system keypads:
  – Exit countdown
  – Time and date display*
  – Event log*
• Auto keypad backlighting on entry
• Keyswitch arming
• Programmable macro buttons and single-button arming
• A variety of wireless remote controls for single-button operation
• User Scheduling
  – Latchkey reports to pagers
  – Auto arm/disarm
  – “User access” time windows
• Supports up to two numeric pagers
• VIP Module allows system control from any touchtone phone
• Chime by zone

*Requires custom alpha keypad

Resideo Honeywell Home Vista 15P Spec Sheet
