Honeywell Home Vista-21IPLTE Alarm Kit With 6160RF Keypad

With robust system capacity, flexible communications options and strong installation advantages, the VISTA21iPLTE is an ideal choice and a great value for installations large and small.

• IP alarm reporting and uploading/ downloading via supported communicators
• Supports four graphic touchscreen keypads
• Eight on-board hardwired zones or 15 with Zone Doubling feature
• Two low-current on-board trigger outputs
• Event Log viewable at system keypad with time/date stamp
• 48 system user codes assignable to either partition
• Two independent partitions plus a common partition
• 16 output devices
• Four configurable zone types allows the installer to create custom zone types by assigning all zone attributes
• Works with Sentrol CleanMe maintenance signal supporting four-wire and up to 16 two-wire smokes
• Multiple actions on output devices depending on system state
• Built-in phone line cut monitor with programmable delay and annunciation options

Main Features:

• Includes: VISTA-21IPLTE Control Panel, 6160RF Keypad, WAVE2 2-Tone Sounder, 467 Battery and Transformer.

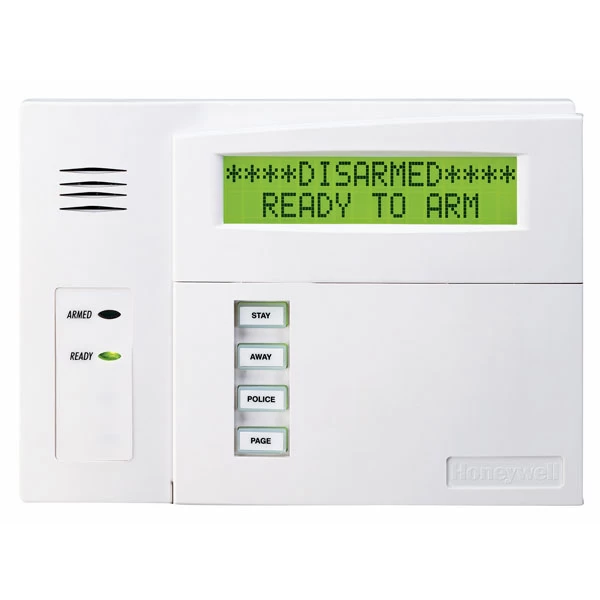

• 6160 is a Deluxe Custom Alpha Display Keypad
• WAVE2 is an indoor 106 DB two-tone indoor sounder
• 467 is a 12V 4AH Sealed Lead Acid Battery
• On-board IP connection is ideal for application where the Internet is the primary path of communications
• Provides dual partitions and up to 48 zones of protection
• Optional LTE-21V radio snaps directly onto the VISTA board, enabling dual path reporting
• Simple radio programming via a 6160 Alpha keypad
• All the features and capabilities of a VISTA-20P control panel with the additional communication benefit:
• Supports four graphic touchscreen keypads
• Wireless keys can be programmed without using zones
• Eight on-board hardwired zones standard (15 when Zone Doubling feature is used)
  – 40 hardwire expansion zones
  – 40 wireless expansion zones
• Two low current on-board trigger outputs
• 100 Event Log viewable at system keypads with time/date stamp
• 48 system user codes assignable to either partition
• Expandable to 48 total zones when used with hardwired and/or wireless expansion modules
• Two independent partitions plus a common partition
  – Global Arming from any system keypad
  – Go to function to view or operate one partition from the other
  – Separate partition account numbers
• 16 output devices
  – Relays (Model 4204 Relay Modules, or 4229 Expansion Module)
• Four installer-configurable zone types allows the installer to create custom zone types by assigning all zone attributes
• Supports four-wire and up to 16 two-wire smokes
  – Works with Sentrol CleanMe™ maintenance signal
• Multiple actions on output devices depending on system state
  – Turns lights off when system arms
  – Turns the same light on when system disarms
  – Flashes same lights when system is in alarm
• Built-in phone line cut monitor with programmable delay and annunciation options
  – Display on system keypads
  – Trigger local sounders
  – Trigger system bell

Valuable End-User Features

• • • Viewable on system keypads:
      – Exit countdown
      – Time and date display*
      – Event log*
    • Auto keypad backlighting on entry
    • Keyswitch arming
    • Programmable macro buttons and single-button arming
    • Supports a variety of wireless remote controls for single-button operation
    • User Scheduling
      – Latchkey reports to pagers
      – Auto arm/disarm
      – “User access” time windows
    • VIP Module allows system control from any touchtone phone
    • Chime by zone

*Requires custom alpha keypad

*Remember that the LTE-21V will only work with the VISTA-21iPLTE System-Not the Vista 21IP system
