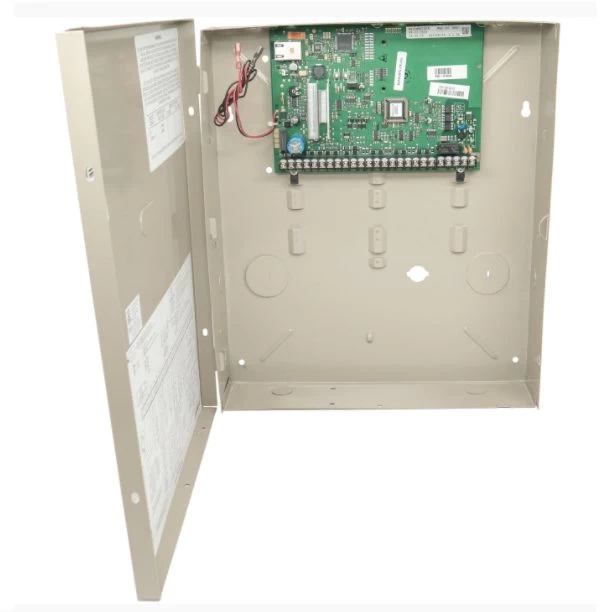

Honeywell Home VISTA-21iPLTE Vista 21ip Control Panel With Built-in IP

With robust system capacity, flexible communications options and strong installation advantages, the VISTA21iPLTE is an ideal choice and a great value for installations large and small.

FEATURES:

• • On-board IP connection is ideal for application where the Internet is the primary path of communications
  • Provides dual partitions and up to 48 zones of protection
  • Optional LTE-21V radio snaps directly onto the VISTA board, enabling dual path reporting
  • Simple radio programming via a 6160 Alpha keypad through AlarmNet 360™ without having to use a 7720P programmer
  • All the features and capabilities of a VISTA-20P control panel with the additional communication benefit:
  • Supports four graphic touchscreen keypads
  • Wireless keys can be programmed without using zones
  • Eight on-board hardwired zones standard (15 when Zone Doubling feature is used)
    – 40 hardwire expansion zones
    – 40 wireless expansion zones
  • Two low current on-board trigger outputs
  • 100 Event Log viewable at system keypads with time/date stamp
  • 48 system user codes assignable to either partition
  • Expandable to 48 total zones when used with hardwired and/or wireless expansion modules
  • Two independent partitions plus a common partition
    – Global Arming from any system keypad
    – Go to function to view or operate one partition from the other
    – Separate partition account numbers
  • 16 output devices
    – Relays (Model 4204 Relay Modules, or 4229 Expansion Module)
  • Four installer-configurable zone types allows the installer to create custom zone types by assigning all zone attributes
  • Supports four-wire and up to 16 two-wire smokes
    – Works with Sentrol CleanMe™ maintenance signal
  • Multiple actions on output devices depending on system state
    – Turns lights off when system arms
    – Turns the same light on when system disarms
    – Flashes same lights when system is in alarm
  • Built-in phone line cut monitor with programmable delay and annunciation options
    – Display on system keypads
    – Trigger local sounders
    – Trigger system bell

Valuable End-User Features

• • • Viewable on system keypads:
      – Exit countdown
      – Time and date display*
      – Event log*
    • Auto keypad backlighting on entry
    • Keyswitch arming
    • Programmable macro buttons and single-button arming
    • Supports a variety of wireless remote controls for single-button operation
    • User Scheduling
      – Latchkey reports to pagers
      – Auto arm/disarm
      – “User access” time windows
    • VIP Module allows system control from any touchtone phone
    • Chime by zone

*Requires custom alpha keypad

*Remember that the LTE-21V will only work with the VISTA-21iPLTE System-Not the Vista 21IP system
