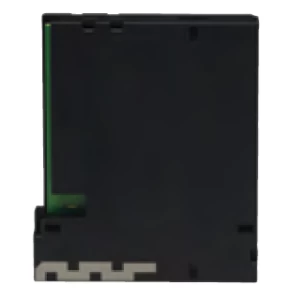

Honeywell LYRICLTE-A AT&T LTE Cellular Module

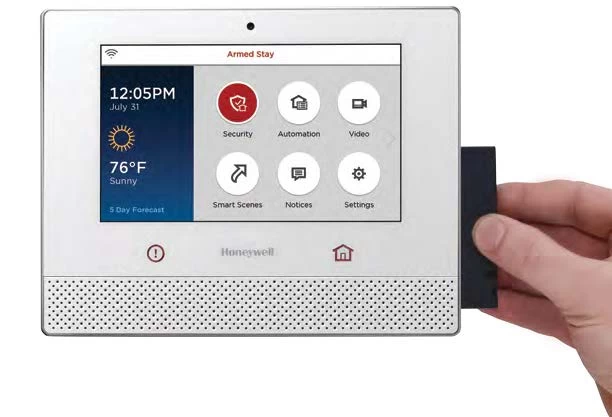

The new Honeywell LYRICLTE-A AT&T LTE Cellular Module brings longer-life cellular connectivity and simple installation to Lyric Controllers. It uses the AT&T LTE network, and AT&T 3G as a fallback if LTE is not available.
Lyric communicators support Honeywell Total Connect® Remote Services*— providing consumers with on-the-go security and home control, video viewing and real-time alerts anytime, anywhere, on any PC or smart device.

Secure Encryption
Lyric communicators employ true, 128-bit AES encryption for a high level of security.

LYRICLTE-A
Digital cellular communicator for use with Lyric Controller
AT&T Network Compatible

Dimensions
3.15″ H x 2.44″ W x 0.55″ D/
80mm H x 62mm W x 14mm D

Electrical

• Powered and battery-backed directly from Lyric Controller
• Input Voltage: 5 VDC nominal
• Quiescent Current: 15mA
• Average Current During Transmit: 300mA

Antenna

• Dual Band: LTE Cat 1, Band 21 (1900MHz), Band 4 (1700/2100MHz), Band 13 (700MHz)
• VSWR: 3:1
• Peak Gain: 2 dBi
• Impedance: 50 ohms
• Polarization: linear
