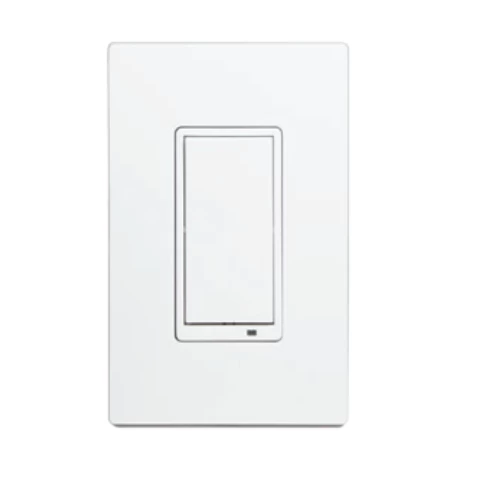

Linear GoControl WT00Z5-1 Z-Wave Smart 3-Way Switch/Dimmer

The Linear GoControl WT00Z5-1 Z-Wave Smart 3-Way Switch/Dimmer allows remote ON/OFF control and dimming of lights controlled by associated Z-Wave modules, creating virtual 3-way switches. The WT00Z5-1 controls no load directly, so it can be wired anywhere power is available, without the need for a traveler wire.

SPECIFICATIONS

• Signal (Frequency): 908.42 MHz
• Load: does not directly control a load. Another Z-Wave device is required
• Range: Up to 100 feet line of sight between the controller and/or the closest Z-Wave device
• Network wide inclusion
• Connect up to 5 devices to create virtual 3,4,5,6,7-way operation
• Requires Minimote
•  Security beaming

Technical Bulletin: Z-Wave 3-Way Light Switch Setup (.pdf) Click here for “5 Things to Know” About Z-Wave Systems (.pdf)

Note to Installers: When installing a Z-Wave 3-Way Light setup utilizing Nortek Security & Control products, you will need a Load Bearing switch (WS15Z-1, WD500Z-1 or WD1000Z-1) and a non-load bearing WT00Z-1. Multiple WT00Z-1 switches can be utilized to control multiple Load Bearing devices. Please refer to the linked Technical Bulletin on Z-Wave 3-Way Light Switch Setup for more information.
