Qolsys IQP4003 IQ Panel 4 PowerG + 345 MHz- Verizon
Original price was: $355.00.$97.99Current price is: $97.99.

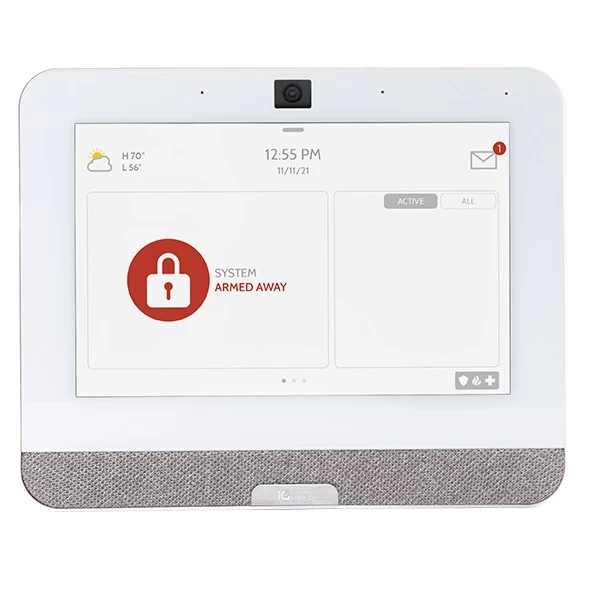

Qolsys IQ Panel 4 PowerG + 345 MHz- Verizon (White)
- 100% High-Quality Guarantee
- Effortless Shopping, Quality Products
- Service with a smile, always online.
- Multiple payment methods, safe and reliable
The Qolsys IQP4003 IQ Panel 4 PowerG + 345 MHz- Verizon is an all-in one wireless 7″ touchscreen control panel with built in wifi and Cellular using the Alarm.com platform. This IQ 4 Panel is perfect for home or small business security. The IQ 4 Panel is also great for a new or upgraded installation. The IQ Panel 4 offers a built-in 8MP, 120 degree wide angle front camera with FlexTilt so you can receive images of who is disarming your system along with alarm images. The IQ Panel 4 supports 128 zones, 242 users, an 8-core Qualcomm SnapDragon Processor and it has 16 GB of NAND Flash memory. The Qolsys IQ Panel 2 is now offered in Black and White to match any decor. This panel is offered in both AT&T Cellular as well as different frequencies to support any existing equipment you may already have installed. Just be sure to purchase the panel with the best cellular network for your area as the cellular is built into the panel so it cannot be swapped out if the signal is low, the panel would need to be replaced.
The IQ Panel 4 includes LIVE VIEW. The Live view feature offers the ability to view Alarm.com Video Camera on the screen and Live Answer gives you the ability to answer your supported Skybell or Alarm.com video doorbell.
The IQ Panel 4 comes with built in Cellular using Alarm.com, WIFI, Z-Wave Pluss 700 Series, Bluetooth Low Energy BLE for touchless disarming of your alarm panel, a built in glassbreak sensor and PowerG giving you all the features and benefits in one panel. As a Z-Wave hub you can control lights, locks, thermostats and so much more. With the built-in 4 x 4 watt speakers, the IQ Panel 4 allows for QuadSound Bluetooth audio streaming from your devices. You can add the optional IQ Base Table Stand subwoofer for a louder and more enhanced streaming music experience.
Qolsys IQ Panel 4 Overview Video
SPECIFICATIONS:
| SPECIFICATIONS | ||
| Items | Parameters | IQ Panel 4 |
| LCD Display | Size | 7 inch LCD |
| Resolution | 1280 x 800 pixels | |
| Brightness | 300 cd/m2 | |
| RGB Color | 24bit, 16.9 Million Colors | |
| Touchscreen | Type | Capacitive glass multi-touch |
| User Codes | Up to 242 | Role-based (Dealer, Installer, Master, User, Guest, Duress) |
| Network | WiFi | WiFi 802.11 a/b/g/n/ac dual band 2.4/5GHz – including built-in access point capability |
| Cellular | LTE Category 4 (Bands 2/25, 4/66, 5, 7, 12/17, 13, 14 Non-FirstNet, 26) | |
| Z-Wave Plus (700) | Up to 137 Devices | 137 total (Up to 80 lights, up to 20 locks, up to 10 thermostats, up to 6 garage doors, up to 21 misc.) |
| PowerG | Up to 128 Devices | 915 MHz Long Range Secure Encrypted 2-Way Wireless |
| Security RF | Up to 128 Devices | Depending on the model: Either S-Line Encrypted 319.5 MHz, 345 MHz, or 433 MHz |
| Bluetooth | Disarm & Audio Streaming | Bluetooth Low Energy (BLE) 4.2 |
| Flash Memory | Internal Storage | 16GB NAND Flash |
| LED Indicator | Status LED | Triple full color RGB LED |
| Speaker/Siren | 4W x 4 | QuadSound 4x front-facing 4W speakers and 85-decibel siren |
| Camera | Front Camera | 8MP Wide-Angle, 120° Field-of-View, Fixed-Focus Camera, with Flex-Tilt Adjustment |
| Microphone | MEMS x3 | 3 MEMS (Micro-Electro-Mechanical System) Microphones with Echo Cancellation |
| Tamper | Tamper Switch | Dual panel and wall tamper with spring release and Smash and Grab reporting |
| Battery | Type 18650 | Rechargeable Lithium Ion 3000mAh Rated for over 24 hours |
| Buttons | Hard Button | Single wake/sleep button, all user controls through touch interface |
| Mechanical | Dimensions | 6.1”H x 7.5”W x 1”D (155mm x 191mm x 26mm) |
| Power Supply | DC | 7v DC 1000mA CC, Input 100-240VAC 50/60Hz Adapter evaluated at 120vAC for UL/cUL |
| Mount | Back Plate | SmartMount for wall mounting included. SmartMount table stand or SmartMount IQ Base Table Stand with built-in Subwoofer sold separately |
| Certifications | FCC | FCC: 2AAJXQS-IQPANEL4 (may contain additional modules with separate FCC IDs) |
| IC | IC: 11205A-QSIQPANEL4 | |
| UL | UL-985, UL-1023, UL2610, ULC-S545, ULC-S304 | |
| Temperature | Operational | 0°C to 49°C, 32°F to 120.2°F, up to 93% relative humidity, indoor, dry ordinary locations use only |
| Storage | -20°C to 50°C, -4°F to 122°F | |
| Operating System | Android 9 | Security & Home Automation Touch and Swipe Interface |
| Processor | 8 core | Qualcomm Snapdragon 8 core SOM (System on a Module) with 16GB of NAND Flash |
Qolsys IQ Panel 4 Installation Manual
Qolsys IQ Panel 4 Quick Guide
Qolsys IQ Panel 4 User Guide
