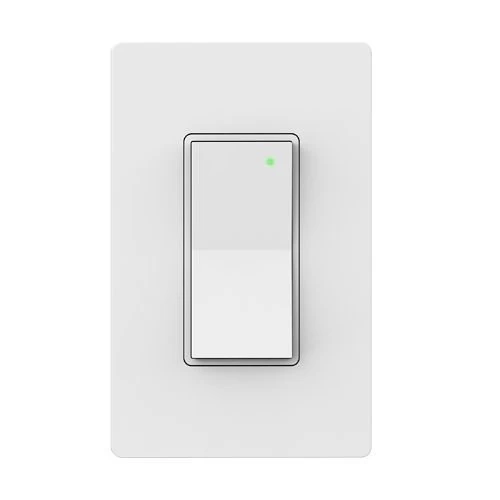

Qolsys IQSWH-PG IQ POWERG In-Wall Switch

An in-wall PowerG switch for Qolsys Panels is called the Qolsys IQ Switch-PG. It works with both the IQ Pro and IQ Panel 4. Additionally, it works with the IQ4 Hub PowerG and Qolsys IQ4 NS versions. Use a long-range PowerG signal to control lights across the property. Change your current light switch to include smart control via Qolsys and Alarm.com panels.

Fetures:

• Intelligent in-wall power switch
• Manage the electrical equipment that is linked to the circuit.
• Fitted into a wall inside
• PowerG encrypted wireless radio transmissions
• In line with the interactive Alarm.com platform

Specifications:

• 912–919 MHz is the frequency.
• Method: PowerG
• Max Noise Level: 24 dB at 20 cm
• Maximum Weight: Luminous 600W, 300W CFL/LED Standby Power Requirement: <1W
• Energy Source: 120V at 60Hz
• Maximum Amperage: 5A
• Wiring: 16 AWG wire gauge, direct wiring connection
• Temperature range: 0% to 85%, non-condensing Functioning Temperature range: 32°F to 104°F, or 0°C to 40°C.
• Storage temperature range: -4°F to 140°F (-20°C to 60°C).
• Weight of Device: 116g
• Shade: White
• Compatible with IQ Panel 4, IQ4 Hub and IQ4 NS (Software V4.4.0 and higher)

Qolsys IQSWH-PG Installation Guide
