Qolsys QS7133-840 IQ HARDWIRE 16-F Wired To Wireless Converter

Name: Qolsys QS7133-840 IQ HARDWIRE 16-F Wired To Wireless Converter
SKU: QS7133-840
Availability: InStock

Original price was: $98.99.Current price is: $69.29.

Qolsys IQ HARDWIRE 16-F Wired To Wireless Converter (Small Enclosure)

SKU: QS7133-840 Categories: Receivers, Repeaters, Translators, Expansions and Modules, Security Products Tags: 16-F, IQ Hardware, IQ2, Qolsys

100% High-Quality Guarantee
Effortless Shopping, Quality Products
Service with a smile, always online.
Multiple payment methods, safe and reliable

Description
Reviews (0)

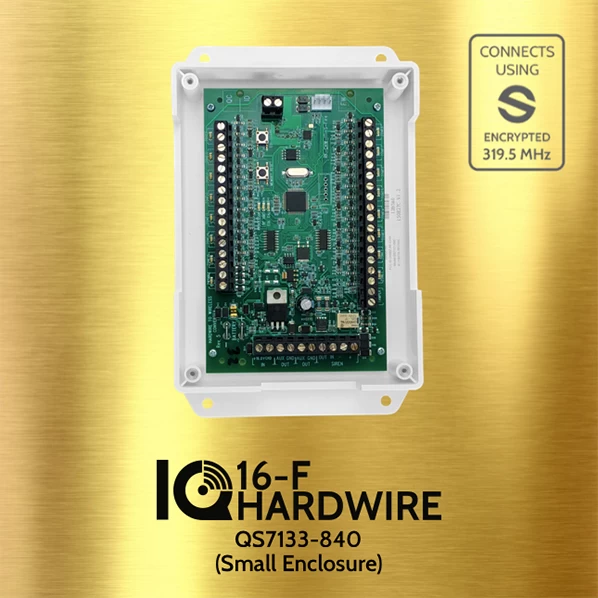

IQ Hardwire 16-F (Small Enclosure)

The Qolsys QS7133-840 IQ HARDWIRE 16-F Wired To Wireless Converter (Small Enclosure) offers a cost effective way of integrating hardwired security & smoke detector zones with the IQ Panel 2/2+. It includes a small enclosure designed to be mounted in an existing can, backup battery charging, 500mA of 12 volt auxiliary power, an onboard siren relay, built-in status LED’s for each zone and support for up to 10 two-wire smoke detectors. Normally Open and Normally Closed contacts are supported as well as powered zones like motion sensors and glass break detectors.

FEATURES

– Small small plastic enclosure designed to be mounted in an existing can
– Encrypted S-Line sensor technology protects signals sent to the IQ Panel while still providing support for legacy 319.5 systems
– Supports up to ten two wire smoke detectors
– LED lighted zones for ease of “learn-in” installation/troubleshooting
– EOL supervision using 4.7K Ohm resistors (included) or 1k-10k Ohm depending on Resistor Mode
– Up to 500 Milliamps of power for hardwired motion detectors, glass break detector, and/or sirens
– Charging circuit for back-up battery, fully supervised with power outage recovery

SPECIFICATIONS

– Input Voltage: 16.0VDC Plug-In Transformer
– Backup Battery: 12VDC 5AH Max (optional)
– Dimensions: 5.5” X 3.5”
– Operating Temperature: 32 to 122F (0 to 50C)
– Humidity: 95% RH Max
– EOL Supervision: 4.7K Ohm fixed or 1k-10k Ohm depending on Resistor Mode
– Input Zones: 15 N/O or N/C
– Smoke Zone: 1 two-wire smoke loop, 10 detectors max. Support for System Sensor® 2W-B, 2WT-B, 2WTA-B*
– Auxiliary Voltage Output: 12VDC @ 500mA Max
– Tamper Zone: Used for case tamper, no resistor
– Relay Contact: 60VDC/1A Max drives siren

*Detector models should not be mixed
