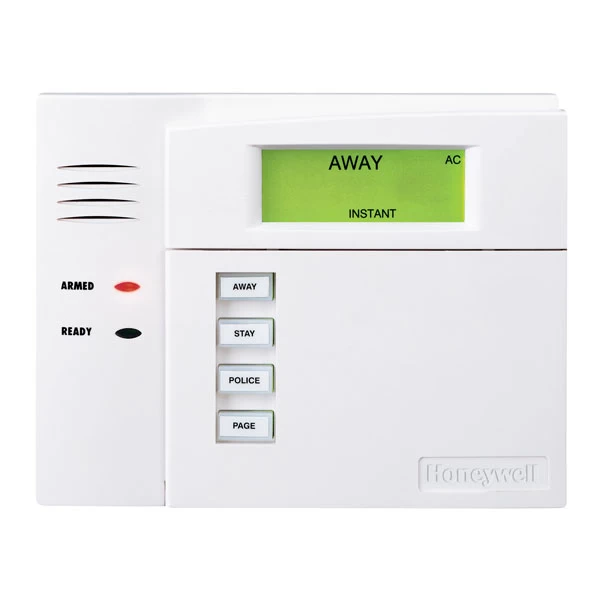

Resideo Honeywell Home 6150RF Numeric Keypad With Built In RF Transceiver

The Resideo Honeywell Home 6150RF Numeric Keypad with built in RF Transceiver is easy to install and simple to use. The attractive white console blends perfectly with any décor and features a contoured, removable door that conceals soft-touch illuminated keys. The 6150 also features a large backlit fixed glass display that uses three-digit zone numbers.

Add wireless technology to any installation with the 6150RF Fixed Language Display Keypad with Integrated Wireless Transceiver, which offers the unbeatable combination of attractive, convenient features and competitive value in a single, quick-install package. The integrated design solves even the trickiest installation challenges and reduces costs by letting you add full wireless capability to any compatible VISTA® control panel—without additional wiring or sacrificing zones.

FEATURES AND BENEFITS:

• Built-in 16-Zone wireless transceiver
• Fully compatible with all 5800 wireless devices including bi-directional
• Large, easy-to-use keypad
• Soft-touch rubber keys, continuously backlit for greater visibility
• Fully compatible with all VISTA® controls
• Piezoelectric sounder with audible beeps to indicate: – System status – Entry/exit delay – Other alarm situations
• System status displayed in fixed English
• No confusing blinking lights
• Four programmable function keys
• System functions clearly labeled
• Functions performed by just entering security code plus command
• White with removable door, blends with any décor

TECHNICAL SPECIFICATIONS

PHYSICAL

4-7/8″ H x 6-1/4″ W x 1″ D (125mm x 160mm x 25mm)

WIRING

– (Black): Ground

+ (Red): +12V DC (Aux. Power)

D1 (Green):“Data in” to control panel

D0 (Yellow): “Data out” from control panel

CURRENT

Standby – 40mA

Activated – 70mA

SOUNDER

Piezoelectric
