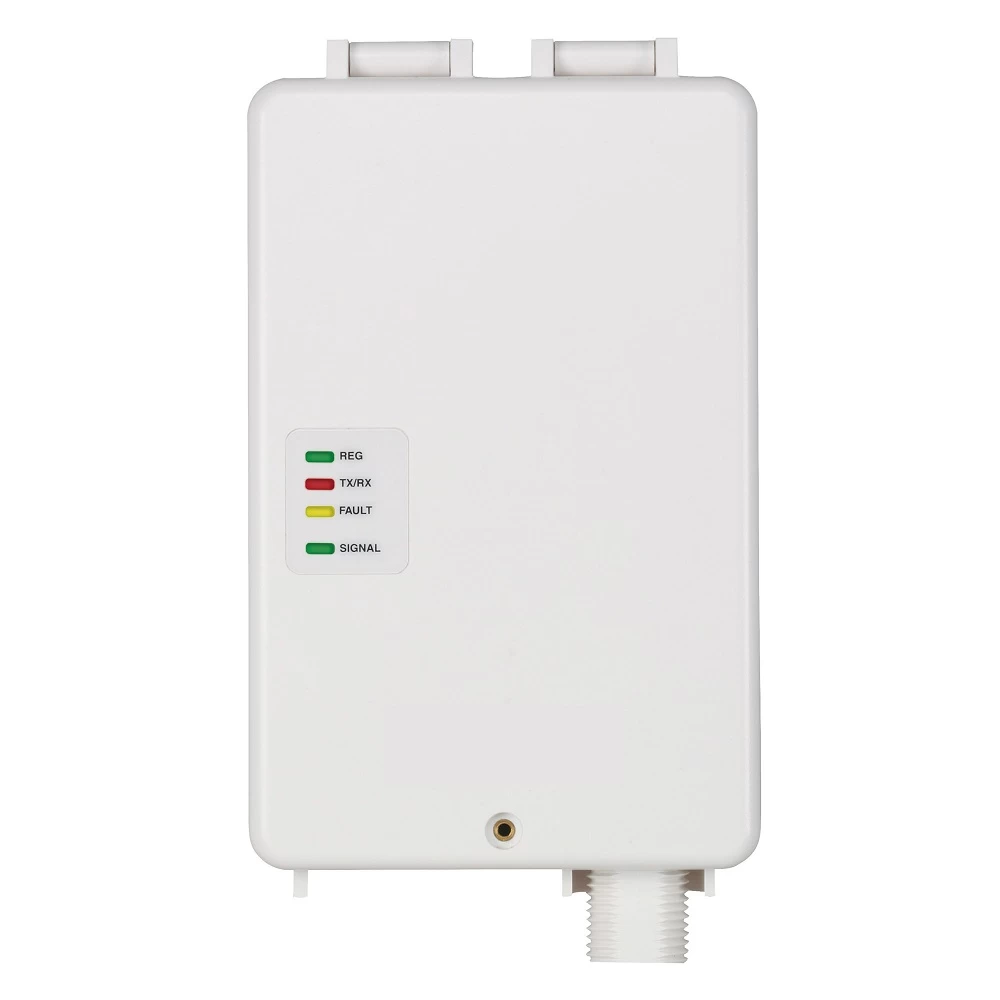

Resideo Honeywell Home LTEM-XV LTE CAT M1 Communicator For Vista Control Panels-VERIZON

The Resideo Honeywell Home LTEM-XV LTE CAT M1 Communicator For Vista Control Panels-VERIZON is one of the latest LTE technologies and offers some of the longest network longevity available. It was designed to support IoT solutions and offers carrier grade security, nationwide network coverage, and strong signal penetration in challenging environments such as underground and deep inside buildings.

The LTEM-XV and LTEM-XA Communicators operate on the LTE Cat M1 Networks offered from Verizon and AT&T. These serve as direct replacements for the LTE-XV and LTE-XA Communicators and share the same form factor, utilize the same accessories, installation and programming.

The LTE Cat M1 Verizon Communicator connects to VISTA®-15P, 20P, 128BPT and 250BPT security system control panels. With this security system, all signals are delivered to AlarmNet® Network Control Center via the cellular carrier’s LTE network, which then routes the information to your customer’s central station. Monitored 24/7, the AlarmNet Network Control Center is fully redundant, capable of routings messages using AlarmNet-i and 800 PLUS services, providing multi-path message delivery.

Resideo is focused on providing the best alarm communication solutions for the security industry. Between VoIP, migration from POTS and the evolution of cellular networks, alternative communication methods are critical in the marketplace.

Product Overview:

• Powerful LTE Cat M1 network communication using the cellular carrier’s network
• Full Contact ID reporting using ECP mode with compatible Honeywell Home control panels
• Advanced 256-bit AES encryption standard for secure communications
• Upload/Download available with select Honeywell Home control panels — requires Compass version 1.5.8.54a or higher
• Quick, easy installation
• Diagnostic LEDs provide signal strength and status indications
• Quality of Service diagnostics via AlarmNet supply vital information including when a message was received, battery voltage, input voltage, signal strength and message path
• Remote programming and diagnostics to improve business efficiencies and reduce truck rolls
• Boost RMR while providing on-the-go security and home control, video viewing and real-time alerts from PC or smart device with Resideo’s Total Connect®* app
• Complete over-the-air FOTA firmware upgrading for remote service management

Features:

• Full Contact ID – Contact ID reporting using ECP mode with compatible Honeywell control panels.
• 256-bit AES Encryption – Advanced encryption standard used for secure communications.
• Integration – Quick and easy installation of cellular communicator for LYNX controls.
• Diagnostic – LEDs Provide signal strength and status indications.
• Remote Services Capability* – Optional Honeywell Total Connect Remote Services -Providing on-the-go security and home control, video viewing, and real-time alerts, anytime, anywhere, on any PC or smart device.
• FOTA Firmware Upgrading – Complete over-the-air firmware upgrading capability. Provides remote service management ability.

*Service subscription required

SPECIFICATIONS:

DESCRIPTION:

-Integrated VISTA ECP design

-Four-wire connection

-Powered by VISTA

-LTE CAT M

PANEL COMPATIBILITY:

All VISTA controls with ECP radio support

DIMENSIONS:

4.0″ x 7.0″ x 1.75″ 10.16cm x 17.78cm x 4.45cm

ELECTRICAL:

Input Power: powered from 12V aux power

Current Drain Standby: 26mA

Current Drain Transmit: 105mA

RF:

Antenna: Internal multi-Band antenna.

ENVIRONMENTAL:

Operating Temperature: -4° to 131° F (-20° to 55° C)

Storage Temperature: -40° to 158° F (-40° to 70° C)

AGENCY LISTINGS:

ETL Listed
