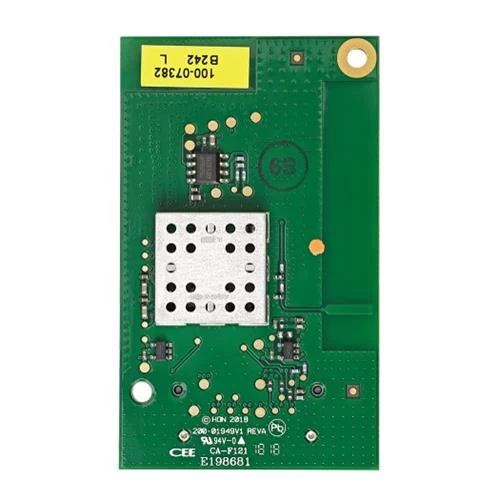

Resideo Honeywell Home PROWIFIZW ProSeries Wi-Fi / Z-Wave Communications Module

The Resideo Honeywell Home PROWIFIZW ProSeries Wi-Fi / Z-Wave Communications Module combines the connectivity of Wi-Fi and the automation of Z-Wave into one easy to install module. The module connects directly to the control panel and is powered by the control panel’s connection.

The PROWIFIZW Communications Module provides a communications path for alarm signaling and remote connectivity to advanced functionality of PROWLTOUCH Wireless Keypad and built-in Amazon Alexa services.

The Honeywell Home PROWIFIZW ProSeries Wi-Fi / Z-Wave Communications Module enables local automation control over Z-Wave capable lights, locks and thermostats. Optionally, automated control can be extended remotely by combining with Resideo’s Total Connect Remote Services.

Compatible ProSeries Controllers include:

• PROA7PLUS

• PROA7PLUSC

• PROA7PLUSCN

The PROWIFIZW requires a router and Internet service for Wi-Fi connection

to the central station and Amazon Alexa services.

FEATURES AND BENEFITS:

-Voice Control: Enable built-in Amazon Alexa voice control for simplicity and hands-free control

-Automation: Z-Wave Automation to control home automation devices

TECHNICAL SPECIFICATIONS:

COMPATIBILITY:  All ProSeries control panels

FREQUENCY: Wi-Fi 802.11 b/g/n 2.4 GHz Z-Wave Plus™

INPUT VOLTAGE RANGE: 3.6 – 14V, Max 17V

INPUT VOLTAGE:  3.5V (PROA7PLUS)     13.5V (PROH8PLUS)

CURRENT USE:  250mA (PROA7PLUS)

BATTERY BACKUP: Yes (panel)

DIMENSIONS: 2.6″ (67mm ) L x 1.5″ (40mm) W

OPERATING TEMPERATURE: 32° to 122° F/0° to 50° C

(Agency Compliance 32° to 120° F/0° to 49° C)

OPERATING HUMIDITY: 95% max. (Agency Compliance 93% max.) non-condensing

APPROVALS: FCC/IC ETL US Listed to UL 985, UL 1023 and UL 1610

cETL Listed to ULC-S545 and ULC  ORD-C1023

CSA C.22.2#205:2012 Ed. 2

AUTHORIZED COUNTRIES:  US, Canada, Latin America
