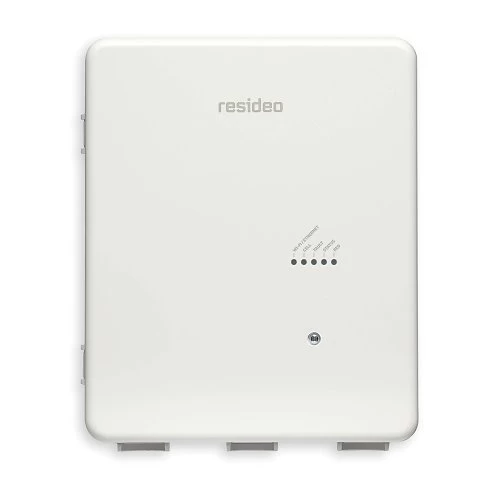

Resideo LTEM-PXV Dual Path Verizon Advanced Modular Communicator

• The LTEM-PXV supports Wi-Fi®/Z-Wave® Module for Wi-Fi connection to the Internet and/or for control of home automation devices (model PROWIFIZW)
• The LTEM-PXV supports Dialer Capture Module for use with control panels that send Contact ID signals via Dialer (model PRODCM)
• The LTEM-PXV supports Wi-Fi Module for Wi-Fi connection to Internet
• Fully powered off the control panel for easy installation
• Smaller footprint
• LTE Cat M1 offers strong signal penetration
• LTE Cat 1 options available for Canada and Latin America
• Get automation control and WiFi with PROWIFIZW module add-on
• Use WiFi with PROWIFI optional module add-on
• Universal communicator for Contact ID reporting panels when the PRODCM Dialer Capture Module is added
• Optional Antennas: BLE internal antenna, Internal multi-Band antenna, External Antenna Capability CELL-ANTHB, PROLTE-ANT

• UPC Code: 194160010327

Specifications:

For Use With	VISTA-15P V9.12+, VISTA-20P V9.12+, VISTA-21iP V3.13+, VISTA-128BPT V10.0+, VISTA-250BPT V10.3+

Approvals and Standards	Tested by ETL to meet the following standards: UL 1610, UL 1023, UL 365, Meets UL 985

Power Supply	8 V DC – 13.8 V DC supplied by the control panel

Product Height	9 in, 22.8 cm

Product Weight	16.5 oz, 468 g

Product Width	7.3 in, 18.6 cm

Product Depth	1.7 in, 4.4 cm

Color	White

Ambient Operating Temperature (Max)	120 °F, 49 °C

Application	Advanced Modular Communicators connect with your customers’ VISTA® and non-Resideo control panels

Communication Type	Ethernet

Antenna	BLE internal antenna, Internal multi-Band antenna, External Antenna Capability CELL-ANTHB, PROLTE-ANT or CELLANT3DBPK

Ambient Relative Humidity (Max)	95% relative humidity, non-condensing

Ambient Operating Temperature (Min)	32 °F, 0 °C

Indoor or Outdoor Use	Indoor
