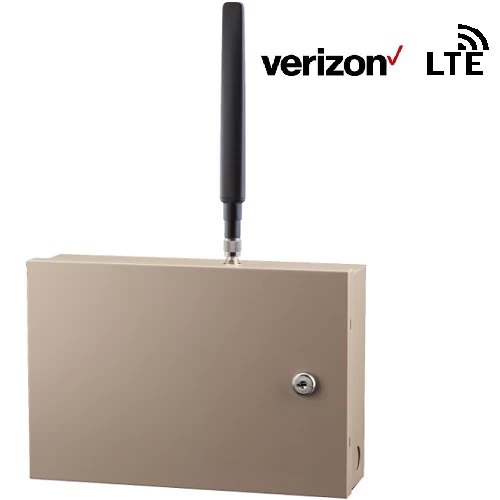

Telguard TG-7E Dual Path Internet And Verizon 5G LTE-M Cellular Alarm Communicator

The Telguard TG-7E Dual Path Internet and 5G LTE-M Cellular Alarm Communicator offers two pathways to reliably transmit signals: a wired LAN connection to the Internet and 5G LTE-M cellular. It operates on panel power or via plug-in AC adapter, and is available in AT&T TG-7E-A or Verizon TG-7E-V models.

The world is changing. Copper POTS lines are disappearing, and calls are delivered over the Internet. This is a perfect example of where the TG-7E steps in. Eliminate all Telco lines and run an Ethernet cable from the TG-7E to the premises LAN for alarm signal delivery. And, to be sure signals get through to the central station you choose, the TG-7E instantly falls over to reliable cellular service any time it’s needed. Telguard puts nearly four decades of alarm communications expertise into every UL Listed communicator. You stay in control, with highly configurable options that meet your needs and all local requirements

FOR: COMMERCIAL

PRODUCT FEATURES

• Dual communication paths – If the Internet connection is interrupted or the LAN goes down, always-on 5G cellular will immediately step in.
• Works on the Verizon LTE Cellular Network
• Powers directly from the alarm panel’s 12V auxiliary power supply or via plug-in transformer (included).
• Uses LTE-M bands for 4G and 5G network compatibility, better building penetration, and longest product life.
• Interfaces with panel over the dialer (DACT) connection for universal compatibility.
• Telguard communicators are compatible with more alarm formats than any other brand. The signal will reliably get to the central station.

UL Listing (Verizon)  • 1610 Central Station

Stay In Compliance

• 256-bit Encryption

• Standard Line Security

• Tamper Switch Included

Specifications

Power Consumption

Standby: 18mA @ 24VDC 40mA @ 12VDC

Transmit: 110mA @ 24VDC 200mA @ 12VDC

Compatible Formats

CID, SIA, Pulse (4×2, 3×1)

Radionics (IIe/3a2,4), DMP

Antenna

50Ω TNC Connector (female)

Size (without antenna)

7.5 H x 11.5 W x 3.5 D in (19.05 x 29.21 x 8.89 cm)
