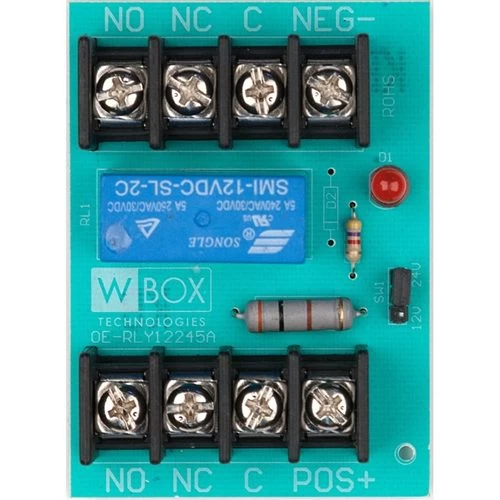

UltraTech WBOX 0E-RLY12245A Relay 12-24 VDC @ 5A DPDT

The UltraTech WBOX 0E-RLY12245A Relay 12-24 VDC @ 5A DPDT applications include intrusion, access control, video surveillance and other systems requiring control or activation of electronic devices. Operations include dry contacts, latching dry  contacts, polarity reversal and line seizure. Includes double-sided foam mounting tape.

FEATURES:

5 AMP 220VAC/28VDC RELAY MODULE

5A 220VAC OR 28VDC DPDT CONTACTS
12 OR 24VDC SELECTABLE OPERATION

• 12 OR 24VDC SELECTABLE OPERATION
• 5 AMP 220VAC OR 28VDC DPDT CONTACTS
• 75 MA CURRENT DRAW
• AC INPUT REQUIRED: 9.6VA
• OPERATING TEMP.: -13°F to 131°F (-25°C to 55°C)
• STORAGE TEMP.: -13°F to 158°F (-25°C to 70°C)
• HUMIDITY: 0 TO 95%

SPECIFICATIONS:

UPC: 811914023425
LENGTH: 2.75”
WIDTH:  2”
HEIGHT: 1”
WEIGHT: 1.9 OUNCES

WBOX 0E-RLY12245A Relay Manual
