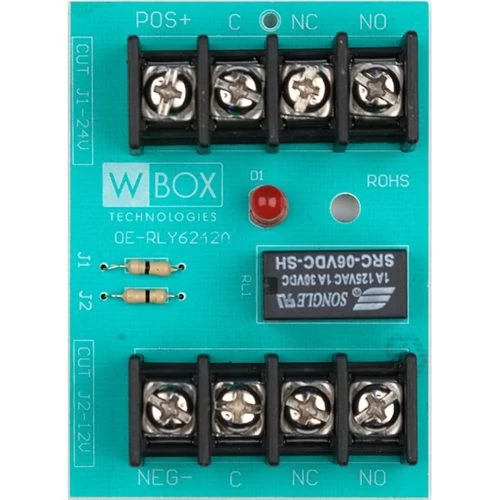

UltraTech WBOX 0E-RLY6242A Relay 6-12-24 VDC @2A DPDT

The UltraTech WBOX 0E-RLY6242A Relay 6-12-24 VDC @2A DPDT applications include intrusion, access control, video surveillance and other systems requiring control or activation of electronic devices. Operations include dry contacts, latching dry  contacts, polarity reversal and line seizure. Includes double-sided foam mounting tape.

FEATURES:

1 AMP 120VAC/2 AMP 28VDC RELAY MODULE

1A 120VAC OR 2A 28VDC DPDT CONTACTS
6, 12 OR 24VDC OPERATION

• 6, 12 OR 24VDC SELECTABLE OPERATION
• 1 AMP 120VAC OR 2A 28VDC DPDT CONTACTS
• 30 MA CURRENT DRAW
• AC INPUT REQUIRED: 6VDC 1.8VA, 12VDC 3.6VA, 24VDC 7.2A
• OPERATING TEMP.: -13°F to 131°F (-25°C to 55°C)
• STORAGE TEMP.: -13°F to 158°F (-25°C to 70°C)
• HUMIDITY: 0 TO 95%

SPECIFICATIONS:

UPC: 811914023432
LENGTH: 2.75”
WIDTH:  2”
HEIGHT: 1”
WEIGHT: 1.6 OUNCES

WBOX 0E-RLY6242A Relay Manual
