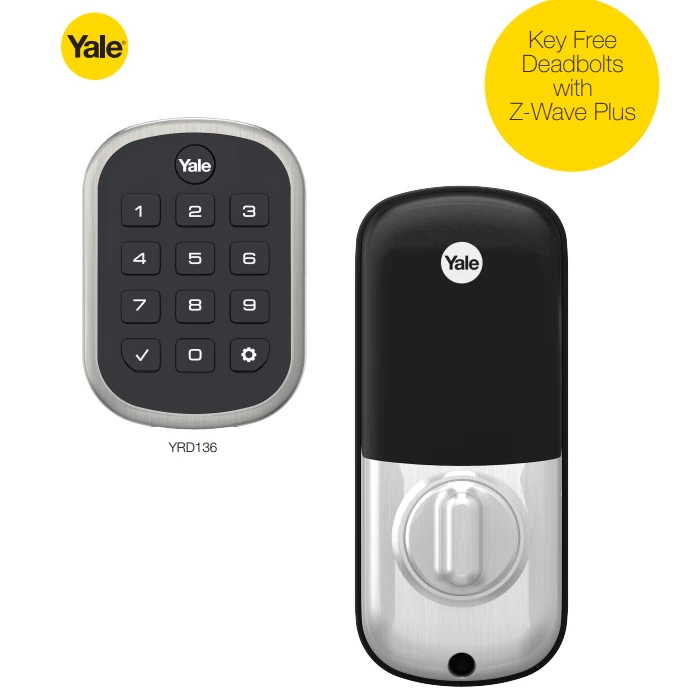

Yale YRD136-ZW2-619 Pushbutton Deadbolt Z-Wave Lock- Satin Nickel

Built for the Pros. Designed for the Home.

The Yale YRD136-ZW2-619 Pushbutton Deadbolt Z-Wave Lock- Satin Nickel is a key-free deadbolt with Z Wave Plus built-in keypad model. It replaces a standard deadbolt in minutes using just a screwdriver and can be added to dozens of Z-Wave smart home and alarm systems with one-touch enrollment.

The lock is 100% key free so it can’t be picked and there’s no keys to lose. To prevent lockouts due to dead batteries, there is a 9V battery terminal located below the keypad. The lock has a backlit keypad that wakes with a touch and has numbers that won’t wear off. It’s backed by a lifetime limited warranty on finish and mechanics, and a one year warranty for electronics.

Features:

• Replaces your existing deadbolt on doors that are 1-3/8″ to 2-1/4″ thick with just a screwdriver
• 100% key free making it more secure than standard deadbolts because there’s no cylinder to pick. Plus, there’s no keys to lose!
• Z-Wave Plus is built in and there’s a single step enrollment process for adding the lock to compatible smart home and alarm systems.
• Works with dozens of Z-Wave Plus smart home and alarm systems including ADT, Honeywell, Alarm.com, Vera, Qolsys, 2Gig and more.
• Create unique entry codes for people you trust and delete codes when you need to.
• You won’t get locked out if the batteries die. Simply hold a 9V battery to the terminals below the keypad for a temporary charge.
• BHMA Grade 2 Certified and backed by Yale with a lifetime warranty on finish and mechanical and one year for electronics.
• The lock’s keypad is backlit so it’s easy to see at night and the numbers won’t wear off.
• Comes with a small bore hole adapter to fit doors with a bore hole of 1-1/2″ or 2-1/8″
• Backed by a lifetime limited warranty on finish and mechanical; one year for electronics .

Specifications:

What’s In The Box	Yale YRD136 Keypad  Lock with Z-Wave Plus, Strike Plate, Mounting Hardware, Installation Manual
Door Thickness	1 3/8” – 2 ¼”
Backset:	2 3/8” or 2 ¾”
Face Bore Dim	2 1/8” or 1 1/2″ with small bore hole adapter
Edge Bore Dims	1″ Diameter 1″ Depth
Latchbolt Type	Round Corner Adjustable Latch to Accommodate a 2 3/8″ or 2 3/4″ Backset
Handing	Self handing (Hand while in unlocked position)
Certifications	Grade 2 A156.36 ANSI/BHMA
Warranty	1 Year Electronics Unlimited Lifetime on Finish and Mechanical
Batteries Included	Yes
Not Compatible With	Mortise Locks, Interconnected Locks, Rim Cylinder Locks
Grade	Grade 2
Number of Keys	0
Number of Entry Codes	100

Yale YRD136 Installation and Programming Manual
